Inline 90 Degree Elbow Coupling
A single-passage 90° rotating joint for hydraulic lines requiring a right-angle connection with continuous or intermittent rotation. Where space constraints or routing geometry rules out an inline coupling, the 90° variant delivers the same torsional protection in a compact elbow configuration. Available in BSPP port sizes from ¼" to 2".
Key Specifications
- Fluid viscosity standard: ISO 3448
- Filtration standard: ISO 4406
Available Port Sizes & Pressure Ratings
- 1/4" BSPP — 200 bar max. (rotating) | 400 bar max. (static)
- 3/8" BSPP — 200 bar max. (rotating) | 400 bar max. (static)
- 1/2" BSPP — 150 bar max. (rotating) | 300 bar max. (static)
- 3/4" BSPP — 150 bar max. (rotating) | 300 bar max. (static)
- 1" BSPP — 100 bar max. (rotating) | 300 bar max. (static)
- 1"1/4 BSPP — 100 bar max. (rotating) | 300 bar max. (static)
- 1"1/2 BSPP — 80 bar max. (rotating) | 300 bar max. (static)
- 2" BSPP — 50 bar max. (rotating) | 250 bar max. (static)

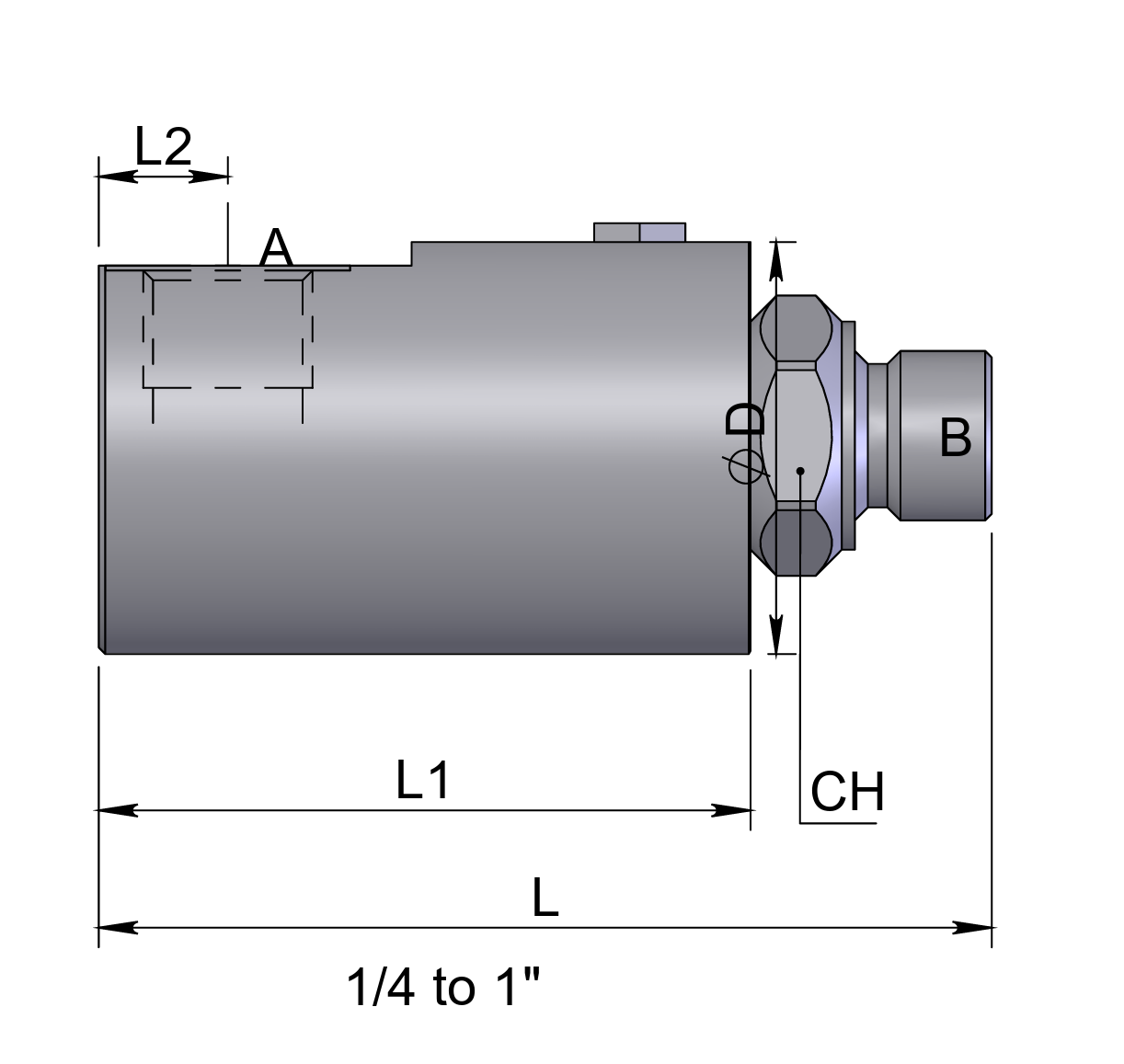

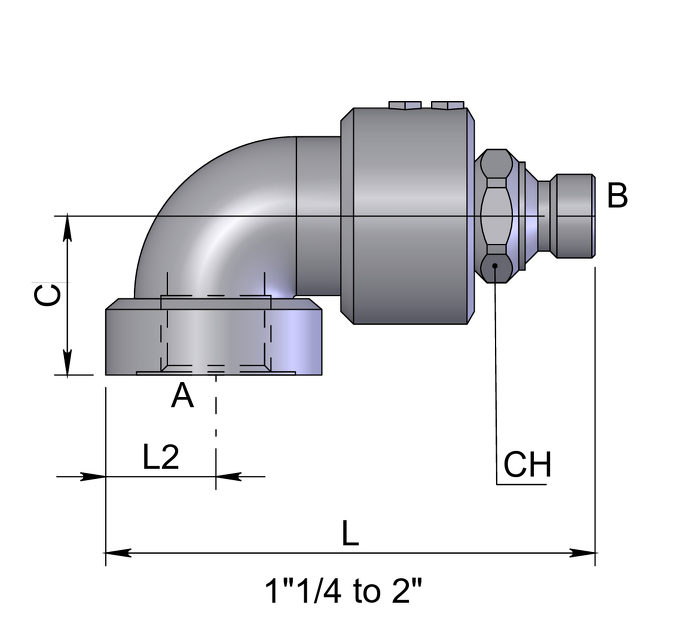

| Ports A-B | L | L1 | L2 | CH | OD | C | P max (bar) in rotation |
| 1/4 | 69 | 50 | 11 | 19 | 33.5 | - | 200 |
| 3/8 | 76 | 54 | 13 | 24 | 37.5 | - | 200 |
| 1/2 | 87 | 63 | 14 | 27 | 39.5 | - | 150 |
| 3/4 | 100 | 70 | 16 | 34 | 54.5 | - | 150 |
| 1" | 113 | 80 | 25 | 41 | 60 | - | 100 |
| 1"1/4 | 121 | - | 32 | 50 | - | 52 | 100 |
| 1"1/2 | 143 | - | 37 | 55 | - | 62 | 80 |
| 2" | 151 | - | 42 | 65 | - | 64 | 50 |
