Kawasaki M2X63B Motor Parts
The Kawasaki M2X63B is a swash plate type axial piston motor widely used in excavator swing and travel drive applications. FPD carries genuine spare parts for the M2X63B, allowing your motor to be rebuilt to Kawasaki's original specifications rather than replaced outright — reducing downtime and cost.
Whether you're completing an in-house rebuild or sending your motor to our workshop, our parts team can confirm availability and despatch quickly. Call us on (07) 849 5771 or email [email protected] with your part numbers.

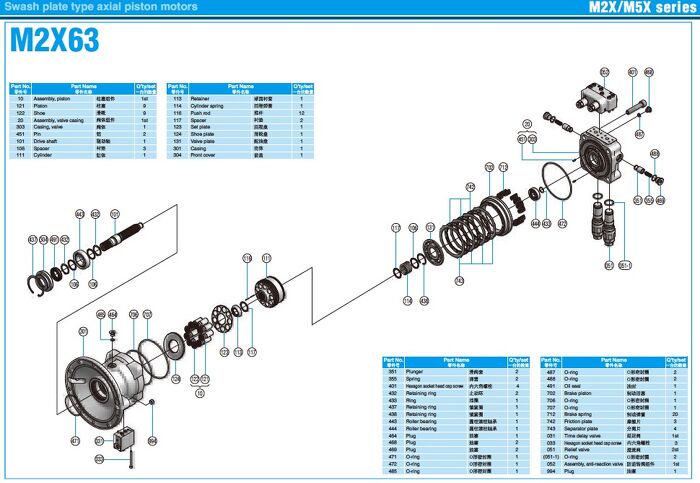

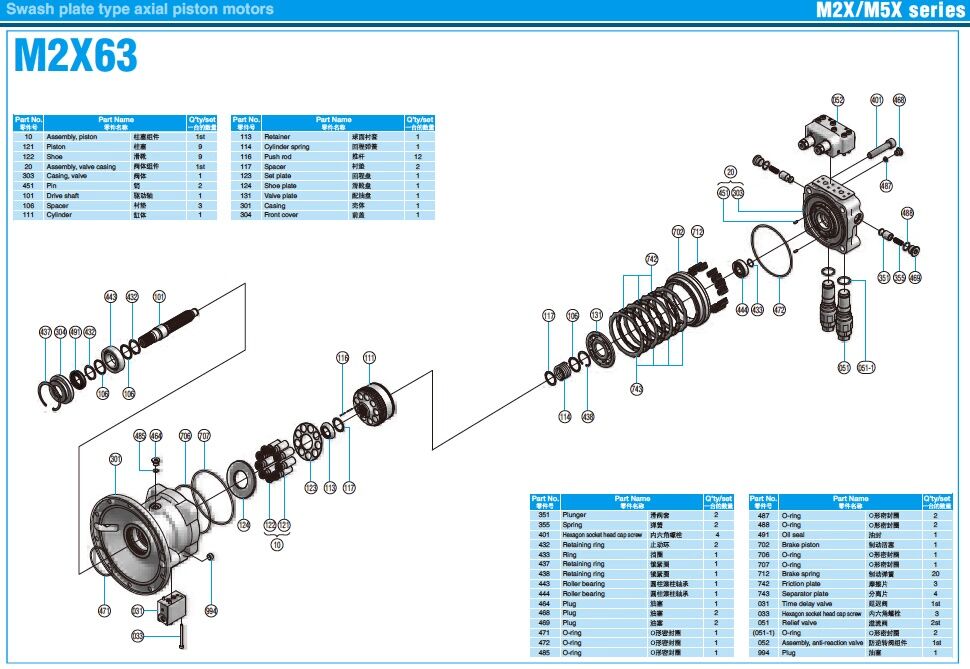

Refer to the illustration to identify required genuine part(s);
- 10 — Assembly, piston
- 20 — Assembly, valve casing
- 33 — Hexagon socket head cap screw
- 51 — Relief valve
- 51-1 — O-ring (relief valve)
- 52 — Time delay valve
- 52 — Assembly, anti-reaction valve
- 101 — Drive shaft
- 106 — Spacer
- 111 — Cylinder
- 113 — Retainer
- 114 — Cylinder spring
- 116 — Push rod
- 117 — Spacer
- 121 — Piston
- 122 — Shoe
- 123 — Set plate
- 124 — Shoe plate
- 131 — Valve plate
- 301 — Casing
- 303 — Casing, valve
- 304 — Front cover
- 351 — Plunger
- 355 — Spring
- 401 — Hexagon socket head cap screw
- 432 — Retaining ring
- 433 — Ring
- 437 — Retaining ring
- 438 — Retaining ring
- 443 — Roller bearing
- 444 — Roller bearing
- 464 — Plug
- 466 — Plug
- 469 — Plug
- 471 — O-ring
- 472 — O-ring
- 485 — O-ring
- 487 — O-ring
- 488 — O-ring
- 491 — Oil seal
- 702 — Brake piston
- 706 — O-ring
- 707 — O-ring
- 712 — Brake spring
- 742 — Friction plate
- 743 — Separator plate
- 994 — Plug
Please enquire as to the part number(s) you require - we have it all on the shelf ready for you.
Genuine Kawasaki product - no after market copies here!
FPD are the exclusive NZ Distributor of Kawasaki (KPM) Mobile parts and equipment.
