Kawasaki M5X130 Motor Parts
The Kawasaki M5X130 is a swash plate type axial piston motor from the M2X/M5X series, used in the swing and travel drive systems of large excavators and heavy plant equipment. FPD carries genuine spare parts for the M5X130, supporting full factory-specification rebuilds and keeping your machine operational with minimal downtime.
Our parts team can confirm availability and advise on the right components for your rebuild. Call (07) 849 5771 or email [email protected] with your part numbers.

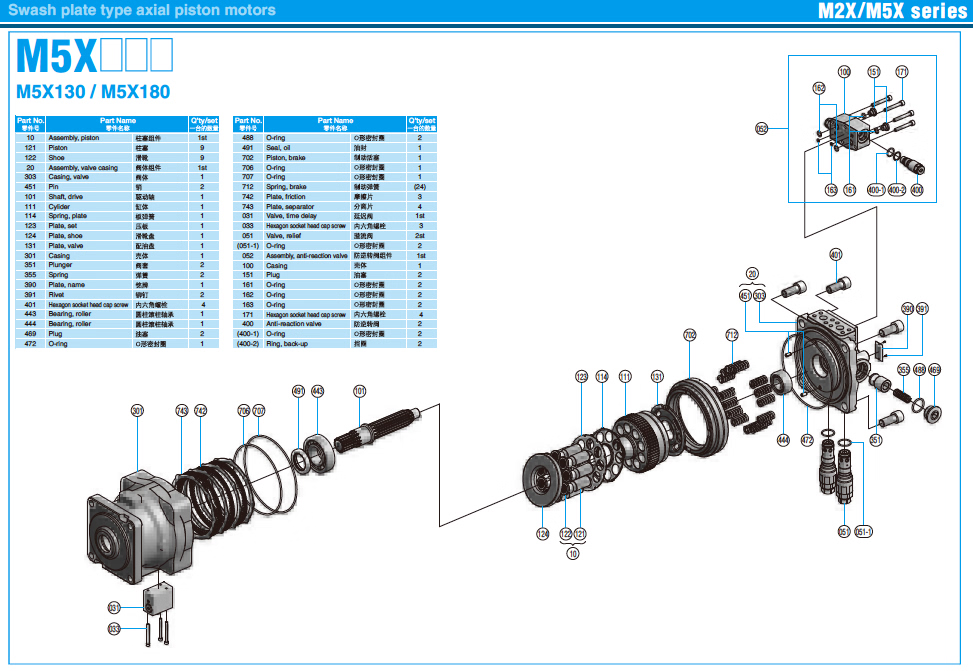

Refer to the illustration to identify required genuine part(s);
- 10 — Assembly, piston
- 20 — Assembly, valve casing
- 31 — Time delay valve
- 33 — Hexagon socket head cap screw
- 51 — Relief valve
- 51-1 — O-ring (relief valve)
- 52 — Assembly, anti-reaction valve
- 100 — Casing
- 101 — Drive shaft
- 111 — Cylinder
- 114 — Plate spring
- 121 — Piston
- 122 — Shoe
- 123 — Set plate
- 124 — Shoe plate
- 131 — Valve plate
- 151 — Plug
- 161 — O-ring
- 162 — O-ring
- 163 — O-ring
- 171 — Hexagon socket head cap screw
- 301 — Casing
- 303 — Casing, valve
- 351 — Plunger
- 355 — Spring
- 400 — Anti-reaction valve
- 400-1 — O-ring (anti-reaction valve)
- 400-2 — Back-up ring
- 401 — Hexagon socket head cap screw
- 443 — Roller bearing
- 444 — Roller bearing
- 451 — Pin
- 469 — Plug
- 472 — O-ring
- 488 — O-ring
- 491 — Oil seal
- 702 — Brake piston
- 706 — O-ring
- 707 — O-ring
- 712 — Brake spring
- 742 — Friction plate
- 743 — Separator plate
Please enquire as to the part number(s) you require - we have it all on the shelf ready for you.
Genuine Kawasaki product - no after market copies here!
FPD are the exclusive NZ Distributor of Kawasaki (KPM) Mobile parts and equipment.
