Kawasaki Staffa HMB030 Motor Parts

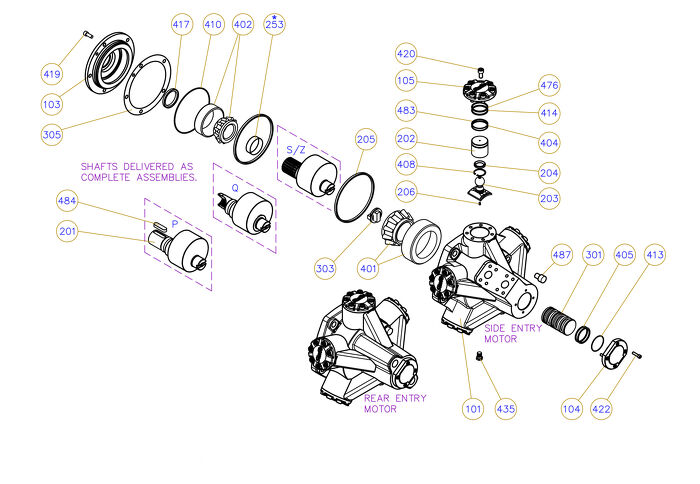

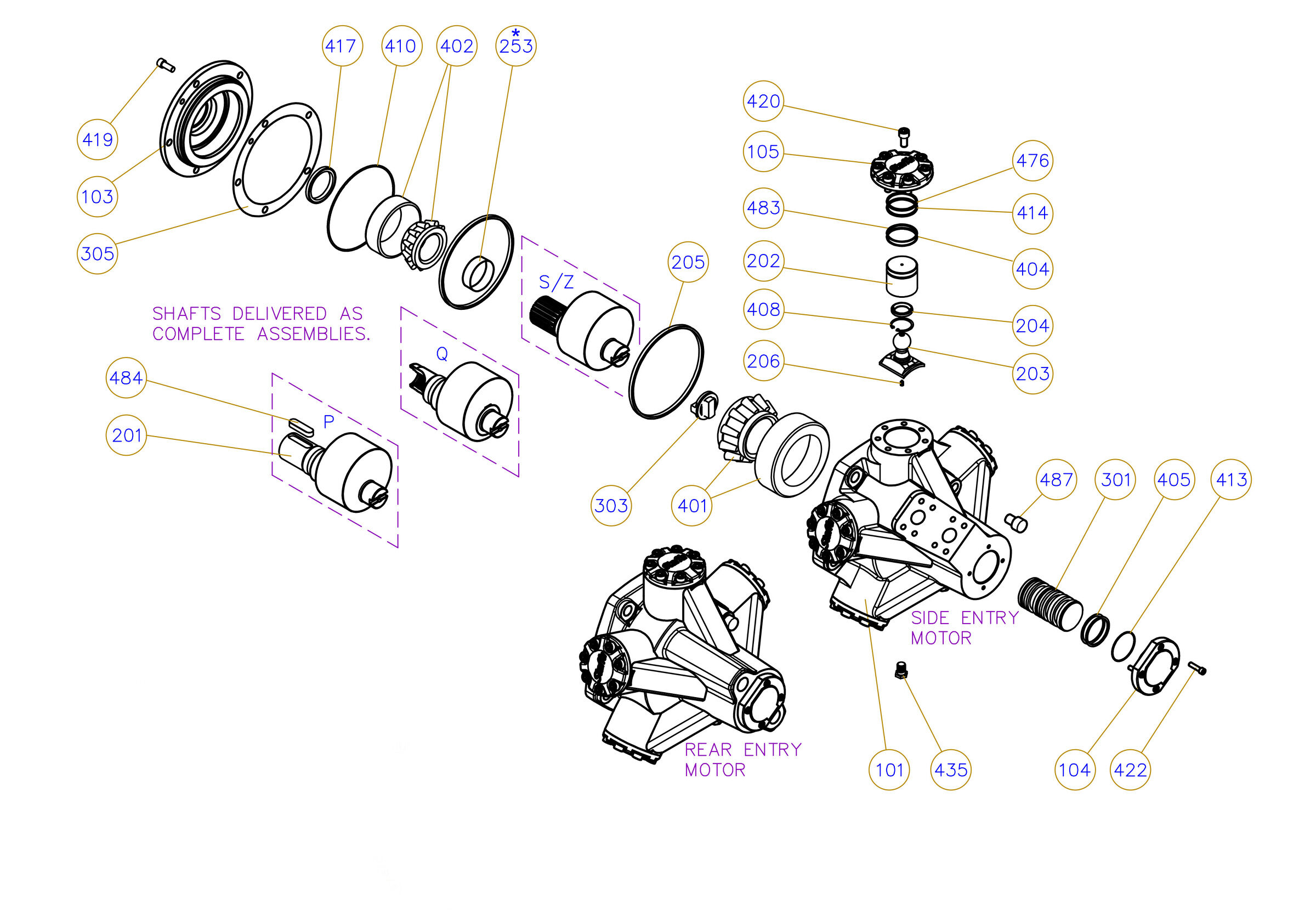

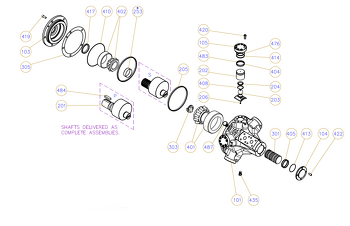

Refer to the illustration to identify required genuine part(s);
- 101 – Motorcase (Qty-1)
- 103 – Front Cover (Qty-1)
- 104 – Valve End Cap (Qty-1)
- 105 – Cylinder Head (Qty-5)
- 201 – Crankshaft (Qty-1)
- 202 – Piston (Qty-5)
- 203 – Con-Rod (Qty-5)
- 204 – Piston Retaining Half Ring (Qty-10)
- 205 – Con-Rod Retaining Ring (Qty-2)
- 206 – Restrictor Screw (Qty-5)
- 253 (Where fitted)* – Shaft Sleeve (Qty-1)
- 301 – Valve Spool (Qty-1)
- 303 – Oldhams Coupling (Qty-1)
- 305 – Shim (Steel) (Qty-–)
- 401 – Rear Bearing (Qty-1)
- 402 – Front Bearing (Qty-1)
- 404 – Piston Seal Ring (Qty-5)
- 405 – Valve Seal Ring (Qty-12)
- 408 – Circlip (Piston-Internal) (Qty-5)
- 410 – O-Ring (Front Cover) (Qty-1)
- 413 – O-Ring (Valve End Cap) (Qty-1)
- 414 – O-Ring (Cylinder Head) (Qty-5)
- 417 – Shaft Seal (Qty-1)
- 419 – S.H.C.S. (Front Cover) (Qty-5)
- 420 – S.H.C.S. (Cylinder End Cap) (Qty-40)
- 422 – S.H.C.S. (Valve End Cap) (Qty-4)
- 435 – Drain Plug (Qty-2)
- 476 – Back-Up Ring (Cylinder End Cap) (Qty-5)
- 483 – Piston Seal Backing Ring (Qty-5)
- 484 – Customer Key (Qty-1)
- 487 – Plastic Plug (Qty-1)
