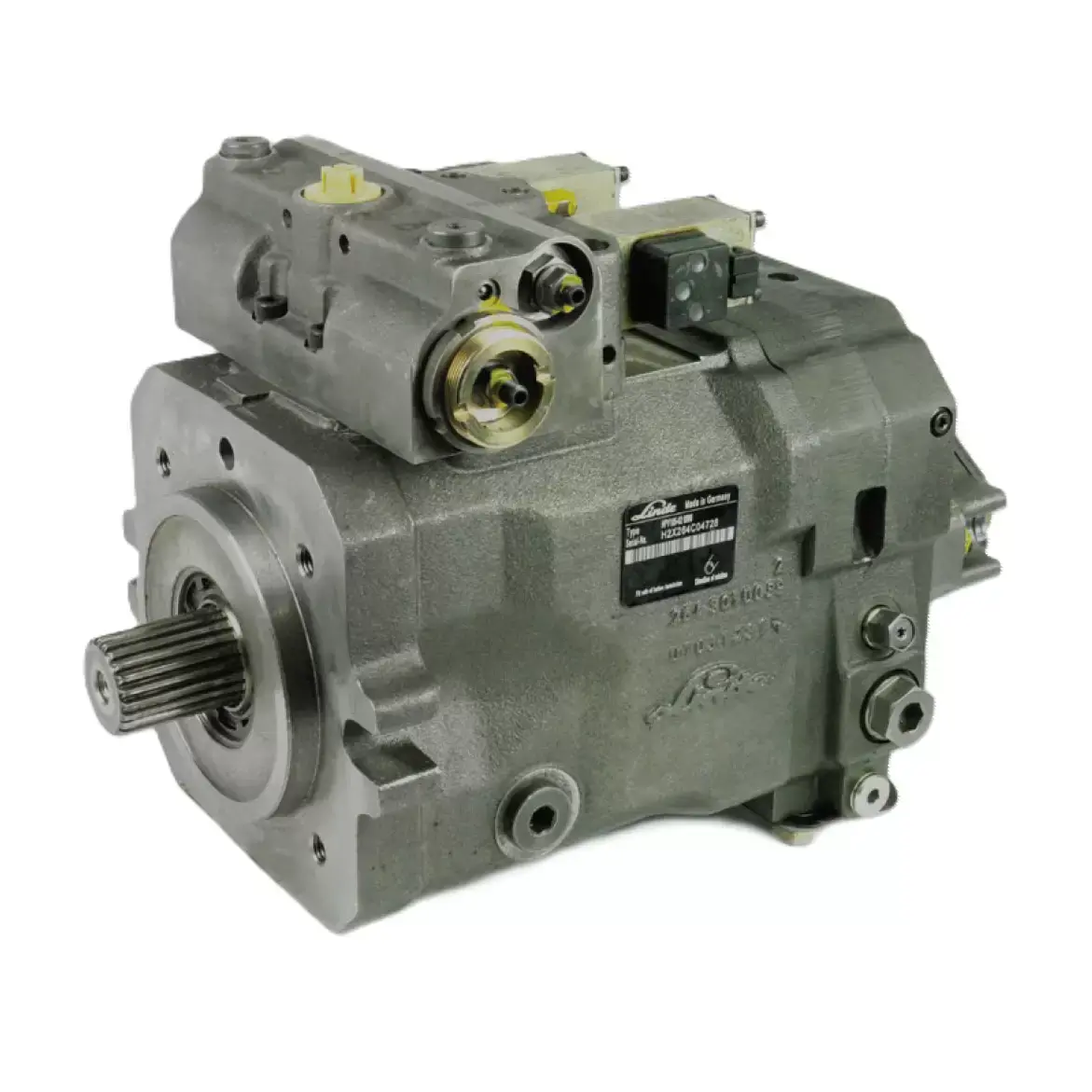

Linde HPV-02 Piston Pump

Linde HPV-02 Piston Pump

The Linde HPV-02 is a variable axial piston pump built for closed loop hydrostatic drive systems. Designed in a swashplate configuration, the HPV-02 delivers precise, load-independent servo control across a full range of mechanical, hydraulic, and electro-hydraulic control options. With rated sizes from 55 to 280 cc/rev, the HPV-02 suits a wide range of mobile plant and machinery applications requiring reliable, high-pressure closed loop performance.

Key Specifications

• Maximum displacement: 54.7–281.9 cc/rev (rated sizes 55–280)
• Nominal pressure: 450 bar
• Maximum pressure: 500 bar
• Max. operating speed: 2300–3900 rpm (depending on rated size)
• Corner power (theoretical): 153–485 kW (depending on rated size)
• Continuous torque: 374–1929 Nm (depending on rated size, at 430 bar / 20 bar charge)
• Control options: mechanical-hydraulic (M1R), hydraulic (H1, H1P), hydraulic-mechanical (CA), electro-hydraulic (E1, E1P, E2, E5)
• Rotation: clockwise or counter clockwise
• Mounting: SAE flange (C, D, E options) with ANSI or SAE spline shaft
• Through shaft options: SAE A, B, B-B, C, D, E
• Integrated high pressure relief valves with make-up function
• Integrated low pressure relief valves for boost, control, and cooler circuits
• Replaceable cartridge filter
• Optional tandem and multiple pump configurations

Need the right configuration for your application? Contact our team to discuss control type, mounting flange, and shaft options.
