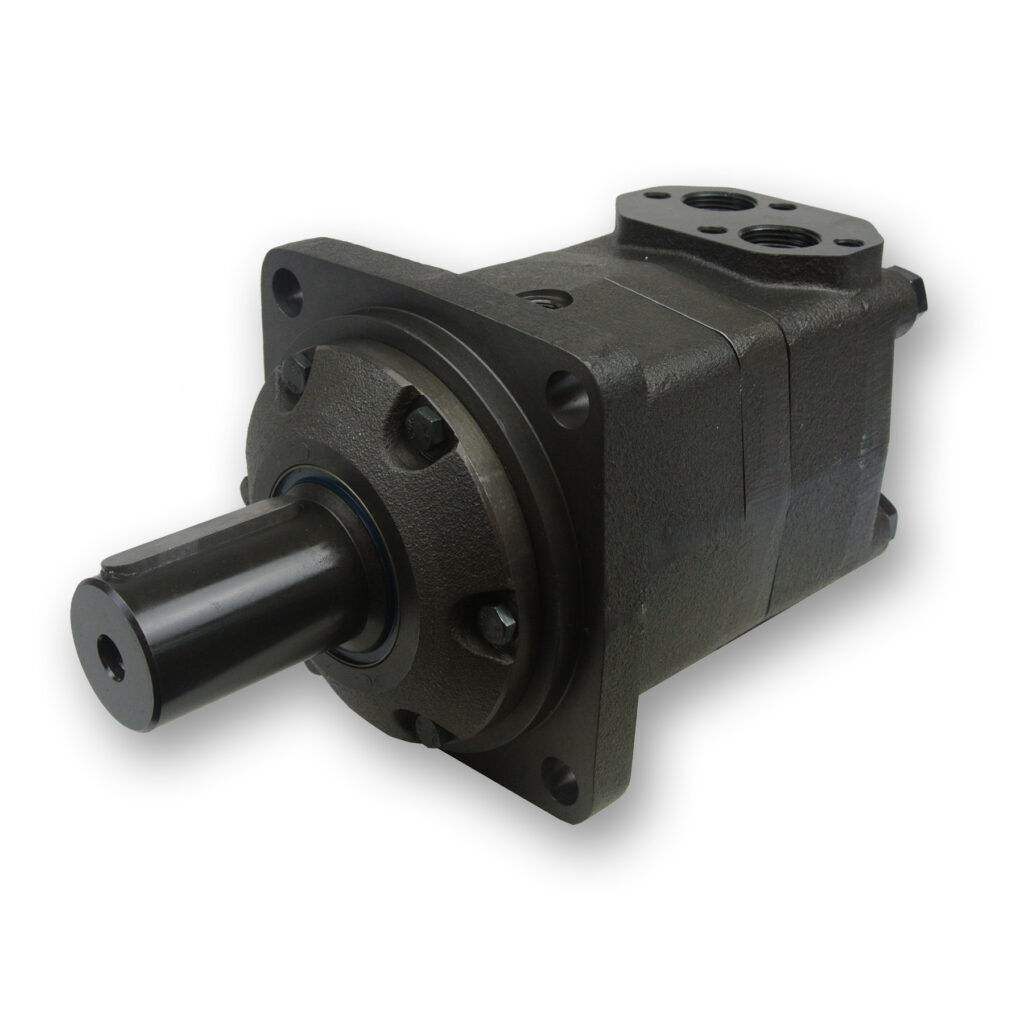

M+S MV Orbital Motor
MV Series Disc Valve Motor – manufactured in Europe by M+S Hydraulic. The MV Series is the ultimate solution for New Zealand’s heaviest hydraulic applications, representing the peak of disc valve technology. This motor is engineered to handle massive power outputs (up to 64 kW) and extreme torque, making it the industry standard for large-scale mining, heavy marine winches, and the most demanding forestry equipment in the country.
Standard pricing option features:
- Shaft: 50mm straight keyed
- Mount: 4-bolt
- Ports: 1″ BSPP
- Case: 1/4″ BSPP
| Part | Displacement (cc) | Max Speed (rpm) | Max Flow (LPM) | Pressure Drop (bar) | Inlet Pressure (bar) | Torque (Nm) | Weight (kg) |
| MV 315 CU HD | 314.5 | 510 | 160 | 200 | 210 | 920 | 32.8 |
| MV 400 CU HD | 400.9 | 500 | 200 | 200 | 210 | 1180 | 33.6 |
| MV 500 CU HD | 499.6 | 400 | 200 | 200 | 210 | 1460 | 34.5 |
| MV 630 CU HD | 629.1 | 320 | 200 | 180 | 210 | 1660 | 35.9 |
| MV 800 CU HD | 801.8 | 250 | 200 | 160 | 210 | 1880 | 37.5 |
