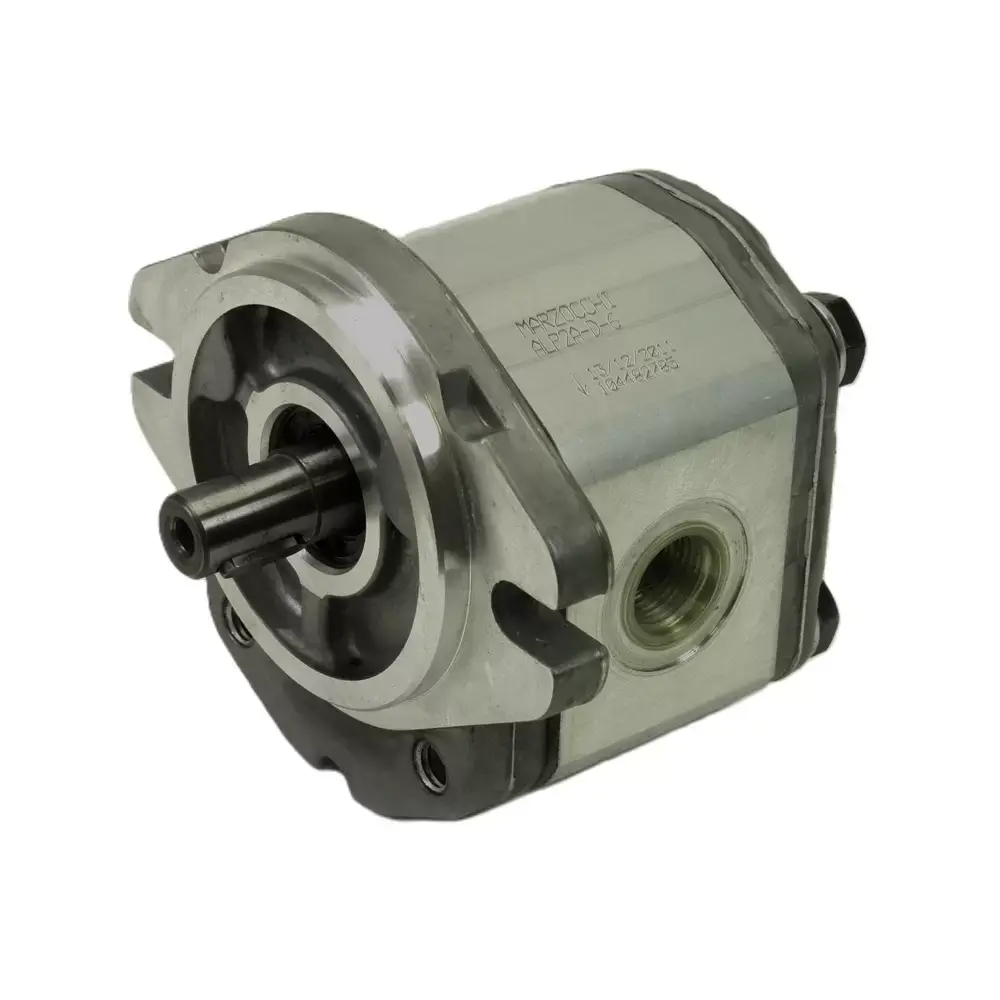

Marzocchi Aluminium Gear Motor
Compact. Bidirectional. Built to take a beating.
The Marzocchi ALM series delivers high hydraulic power from a simple, rugged external gear design — fewer moving parts, lower running costs, and the kind of reliability NZ operators need when downtime isn't an option. In stock at FPD.
Why specify an ALM gear motor?
- Versatile drive — runs clockwise, counter-clockwise, or fully reversible (R) to suit your circuit
- Strong starting torque — develops torque from standstill to get loads moving
- Tough construction — high-resistance aluminium alloy body, case-hardened and ground steel gears, DU-bushed bearings
- Quiet and efficient — pressure-compensated bushings cut internal leakage and noise
- Low weight-to-power ratio — compact footprint for mobile and industrial mounting
The range at a glance
Three groups cover displacements from 2.8 to 87 cm³/rev:
- ALM1 — light-to-medium duty, 2.8–11.0 cm³/rev, up to 250 bar continuous
- ALM2 — medium duty, 4.5–28.2 cm³/rev, up to 250 bar continuous
- ALM3 — heavy duty, 22–87 cm³/rev, up to 230 bar continuous
- Peak pressure (PP): up to 270 bar (smaller displacements)
- Fluid temperature: -10°C to +80°C standard (high/low-temp seal options available)
- Recommended viscosity: 10–100 cSt
- Drain: external, via threaded port on the cover
Configuration options
Specify the build to suit your application:
- Flanges — European, SAE, German square (BK1/2/4/7)
- Shafts — tapered, cylindrical, splined
- Ports — flanged, BSP (G), NPT (Rc), SAE UNF
- Seals — standard NBR or high/low-temperature versions (V, VV, ST, H)
Typical applications
ALM gear motors suit a wide range of mobile and industrial drives — road sweepers, compact rollers, ride-on mowers, machine tools, and auxiliary functions on agricultural and construction equipment.
Applications above are indicative of the motor type — talk to our team to confirm the right fit for your machine.
Source your Marzocchi gear motor from FPD
We stock the Marzocchi ALM range and back it with the technical know-how to match the right displacement, flange, shaft and port configuration to your circuit. Need help selecting? Our team works it through with you.
| Group | Displacement | Max continuous pressure (PI) | Max speed |
| ALM1 | 2.8–11.0 cm³/rev | up to 250 bar | up to 5000 rpm |
| ALM2 | 4.5–28.2 cm³/rev | up to 250 bar | up to 4000 rpm |
| ALM3 | 22–87 cm³/rev | up to 230 bar | up to 3500 rpm |
