M+S Shuttle Valve
Automatically select the higher-pressure signal — no manual switching required. This M+S Hydraulic shuttle valve is designed for use in orbital motor circuits, where it selects the dominant pressure from two inlet ports and routes it to the outlet. Commonly used to supply a pilot signal for brake release or to feed a priority circuit, the shuttle valve is an essential component in closed-loop and load-sensing motor applications where reliable signal selection is critical.
Key Specifications
- Type: Shuttle valve (highest pressure selector)
- Function: Selects higher pressure from two inlet ports for pilot or brake release signal
- Compatible motor circuits: MP, MR series orbital motors
| Part # | Motor Type | A+B Ports | C Ports | Max Continuous Flow | Max Continuous Pressure |

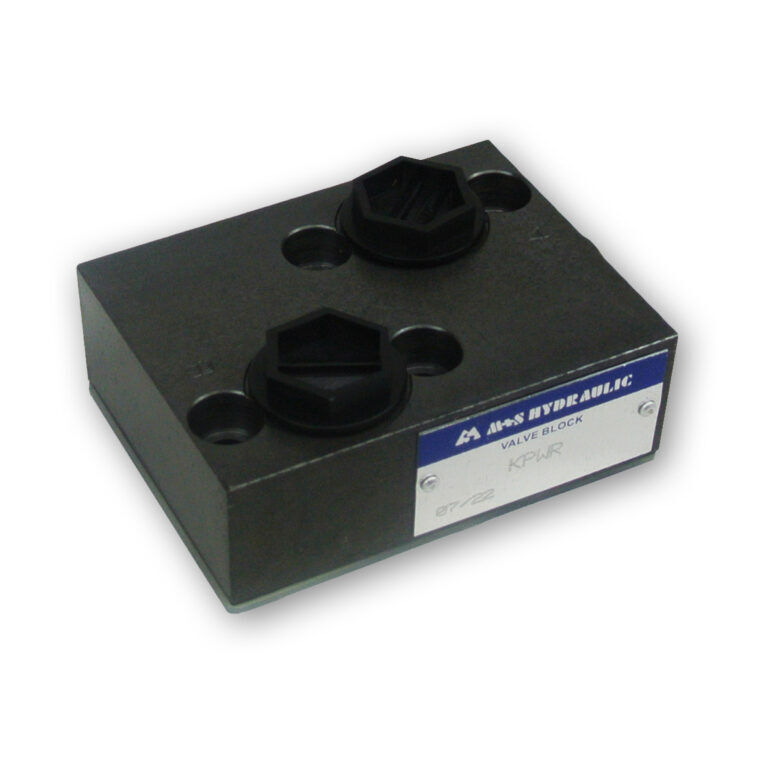

| KPWR | MP/MR/MH/MPYN/MRYN | 1/2” BSPP | 1/4” BSPP | 60 L/min | 250 bar |
| KPWS | MS | 1/2” BSPP | 1/4” BSPP | 60 L/min | 250 bar |
| KPWT | MT | 3/4” BSPP | 1/4” BSPP | 100 L/min | 250 bar |
| KPWV | MV | 1” BSPP | 1/4” BSPP | 200 L/min | 250 bar |
