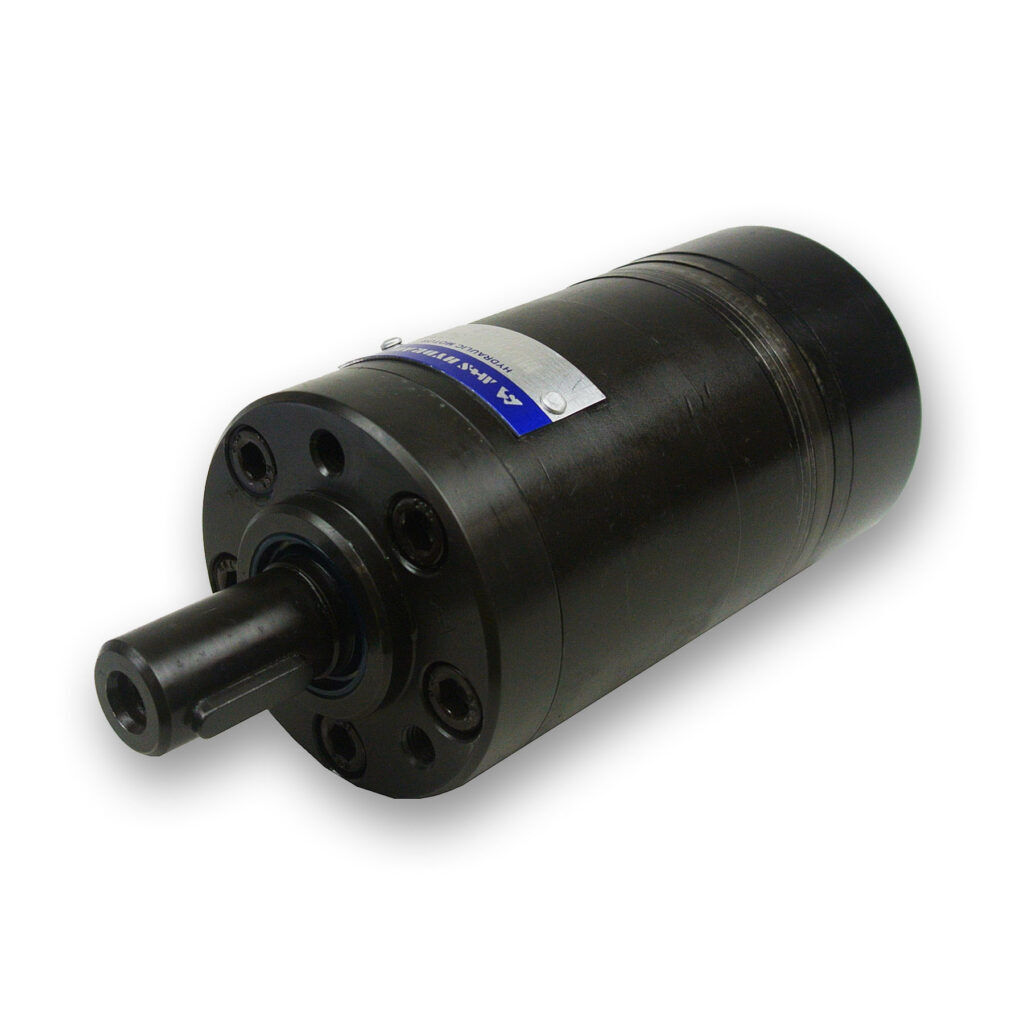

M+S MM Orbital Motor
MM Series Gerotor Motor – manufactured in Europe by M+S Hydraulic. A gerotor-type motor designed for continuous operation in light-duty applications where high speeds and small footprints are required
Standard pricing option features:
- Shaft: 16mm straight keyed
- Mount: 3-bolt
- Ports: 3/8″ BSPP rear
- Case: 1/8″ BSPP
Contact us to see other options, including seal kits.
| Part | Displacement (cc) | Max Speed (rpm) | Max Flow (LPM) | Pressure Drop (bar) | Inlet Pressure (bar) | Torque (Nm) | Weight (kg) |
| MM 8 C | 8.20 | 1950 | 16 | 100 | 140 | 11 | 2 |
| MM 12.5 C | 12.5 | 1550 | 20 | 100 | 140 | 16 | 2.1 |
| MM 20 C | 19.9 | 1000 | 20 | 100 | 140 | 25 | 2.2 |
| MM 32 C | 31.6 | 630 | 20 | 100 | 140 | 40 | 2.3 |
| MM 40 C | 39.8 | 500 | 20 | 90 | 140 | 45 | 2.4 |
| MM 50 C | 50.0 | 400 | 20 | 70 | 140 | 46 | 2.6 |
