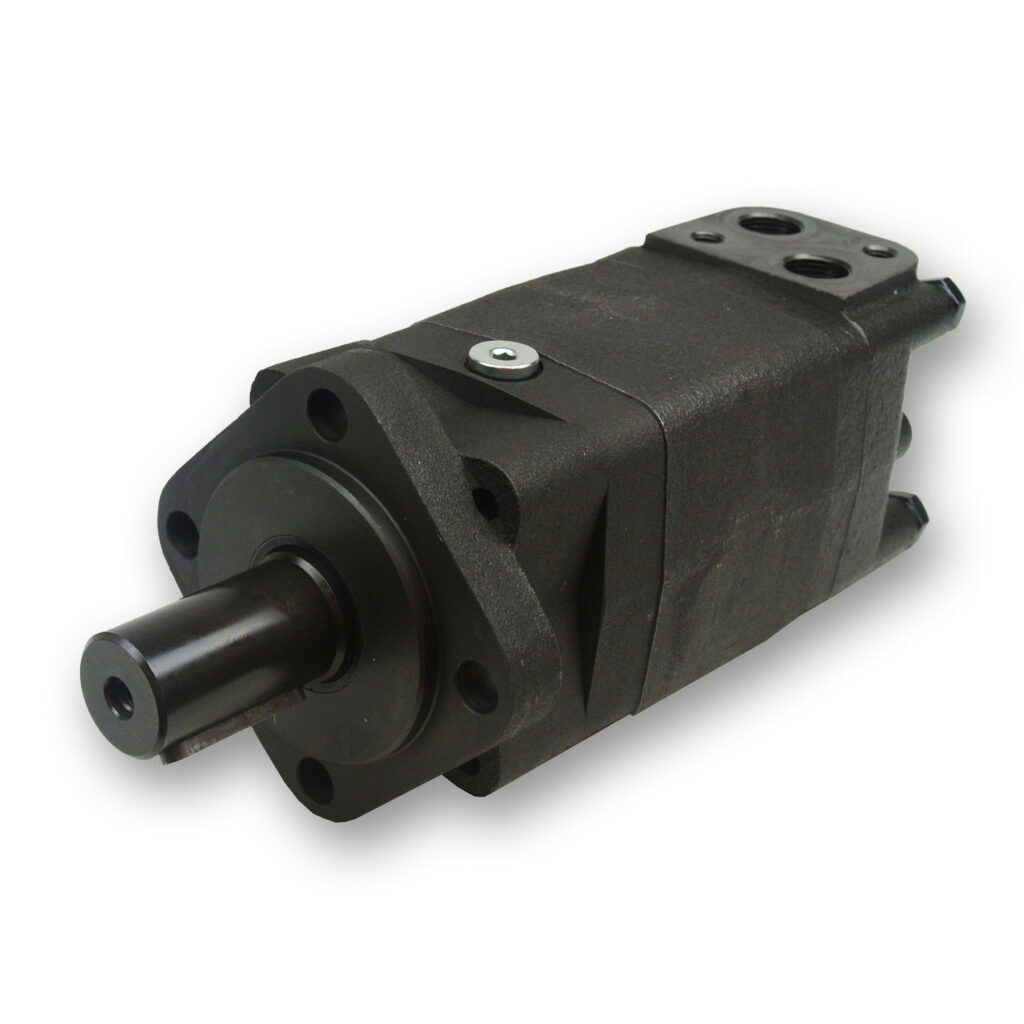

M+S MS Orbital Motor
The MS Series, manufactured in Europe by M+S Hydraulic, introduces Disc Valve technology, representing a significant step up in efficiency, pressure capability, and load-carrying capacity. It is specifically designed for continuous work under rough operating conditions—such as high pressures, thin oil, or frequent reversals—making it a staple for New Zealand's forestry, construction, and heavy agricultural machinery.
- Standard pricing option features:
- Shaft: 1.1/4″ straight keyed
- Mount: SAE A 4-bolt
- Ports: 1/2″ BSPP
- Case: 1/4″ BSPP
Note: we supply more models than shown in the table below, contact us with your requirements.
| Part | Displacement (cc) | Max Speed (rpm) | Max Flow (LPM) | Pressure Drop (bar) | Inlet Pressure (bar) | Torque (Nm) | Weight (kg) |
| MS 80 COU | 80.5 | 810 | 65 | 210 | 230 | 340 | 10.4 |
| MS 125 COU | 125.7 | 600 | 75 | 210 | 230 | 375 | 10.7 |
| MSY 200 COU | 200.0 | 375 | 75 | 210 | 230 | 610 | 11.7 |
| MSY 315 COU | 314.9 | 240 | 75 | 200 | 230 | 825 | 12.9 |
| MSY 475 COU | 474.6 | 160 | 75 | 130 | 230 | 850 | 14.9 |
| MS 565 COU | 564.9 | 130 | 75 | 105 | 230 | 850 | 15.5 |
