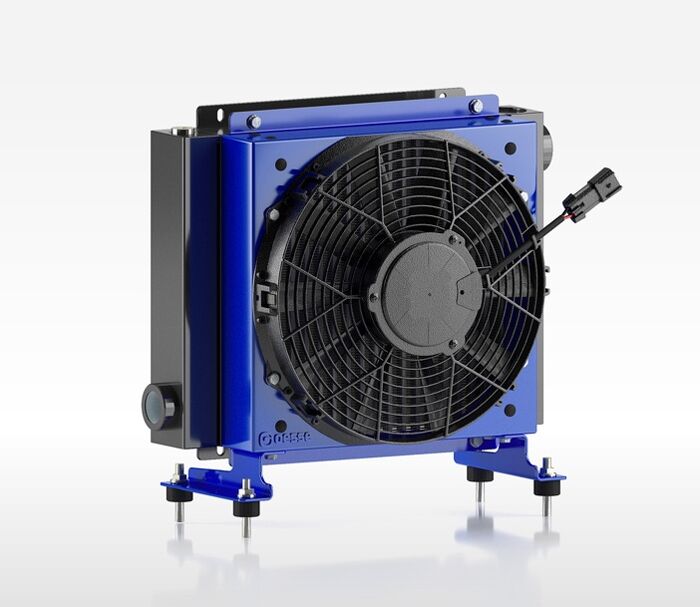

Oesse DC Coolers
Cross-flow, vacuum brazed aluminum heat exchangers with plates and bars technology. Our complete range of standard and custom solutions, all Made in Italy, have been taking the Oesse brand around the world since 1996.
The new HY series guarantees maximum installation flexibility for the user and greater compactness.
A wider range that allows a correct selection based on different application needs, also thanks to a wide range of accessories.
General characteristics:
- electric blower fans
- maximum working pressure (Ps) 16 bar
- test pressure (Pt) 24 bar
- maximum working temperature 120°
- flows from 2.5L /min - 190L /min
- 12VDC or 24VDC options available
| model | Voltage | Min flow [l/min] | Max flow [l/min] | Min Cooling Power [KW] | Max Cooling Power [KW] |
| HY005.1-02A | 12v | 2,5 | 25 | 1.2 | 2.1 |
| HY005.1-04A | 24v | 2,5 | 25 | 1.2 | 2.2 |
| HY010.1-02A | 12v | 10 | 50 | 2.2 | 3.1 |
| HY010.1-04A | 24v | 10 | 50 | 2.1 | 3.1 |
| HY016.1-02A | 12v | 10 | 90 | 2.7 | 4.5 |
| HY016.1-04A | 24v | 10 | 90 | 2.7 | 4.5 |
| HY018.1-02A | 12v | 20 | 140 | 4.9 | 7.1 |
| HY018.1-04A | 24v | 20 | 140 | 5.0 | 7.3 |
| HY024.1-02A | 12v | 20 | 140 | 6.6 | 10.1 |
| HY024.1-04A | 24v | 20 | 140 | 6.6 | 10.2 |
| HY038.1-02A | 12v | 20 | 140 | 8.3 | 14.5 |
| HY038.1-04A | 24v | 20 | 140 | 8.4 | 14.6 |
| HY057.1-02A | 12v | 20 | 160 | 11.1 | 20.8 |
| HY057.1-04A | 24v | 20 | 160 | 10.9 | 20.3 |
| HY090.1-02A | 12v | 30 | 190 | 14.6 | 24.5 |
| HY090.1-04A | 24v | 30 | 190 | 14.7 | 24.9 |
| HY210.1-02A | 12v | 35 | 140 | 13.2 | 19.3 |
| HY210.1-04A | 24v | 35 | 140 | 13.0 | 18.9 |
| HY215.1-02A | 12v | 35 | 140 | 14.7 | 20.8 |
| HY215.1-04A | 24v | 35 | 140 | 14.4 | 20.2 |
| HY220.1-02A | 12v | 40 | 160 | 18.2 | 25.2 |
| HY220.1-04A | 24v | 40 | 160 | 17.9 | 24.6 |
| HY225.1-02A | 12v | 45 | 180 | 23.8 | 34.7 |
| HY225.1-04A | 24v | 45 | 180 | 24.4 | 36.4 |
