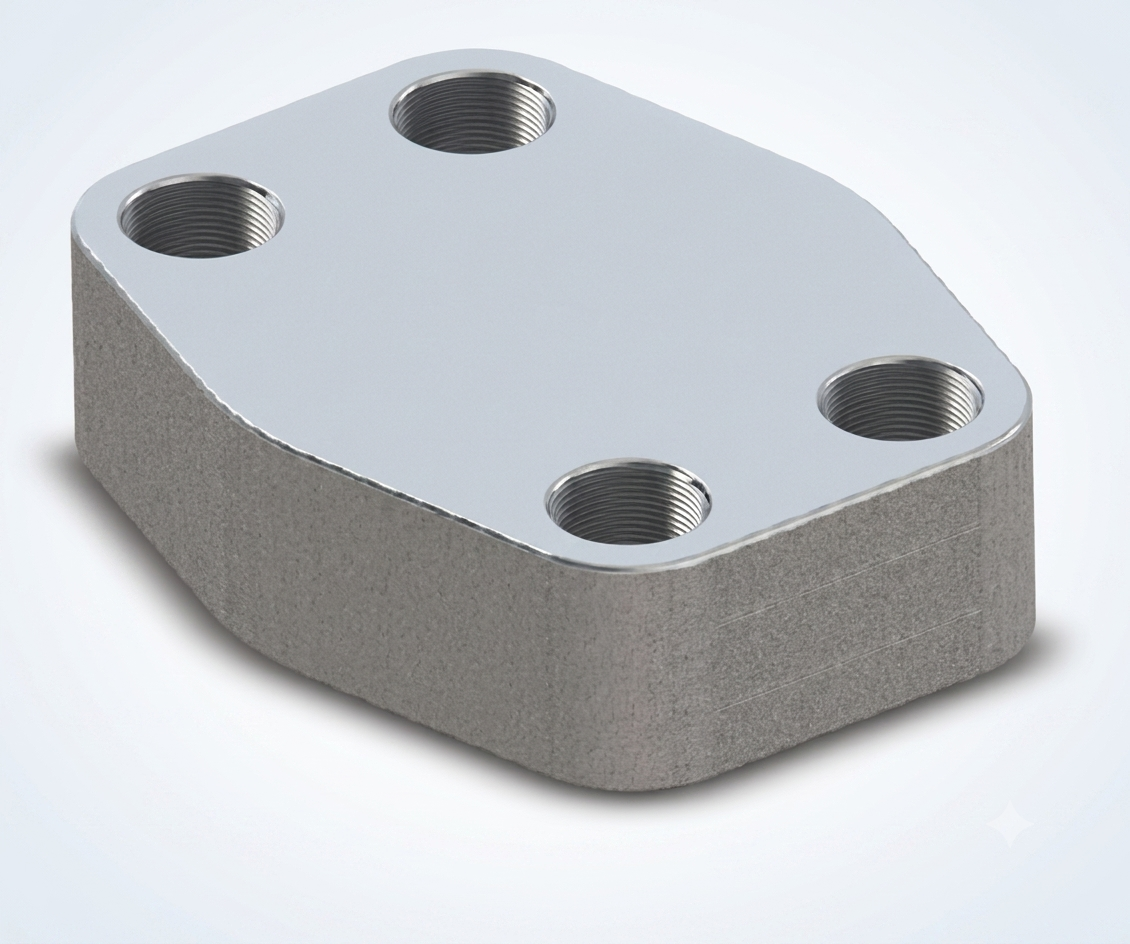

Port Adaptor SAE Blind Keyed Flange Mounting Without O-Ring
A port blanking solution for unused SAE flange ports. The keyed blind flange mounts securely over SAE-pattern ports without an O-ring, using a keyed design for precise angular alignment during installation. Available in SAE 3000 PSI and 6000 PSI configurations across a wide size range — from 1/2" to 5".
- SAE Code 61 (3000 PSI) series and SAE 62 (6000 PSI) series
- Keyed design for precise port alignment
- No O-ring — designed for specific blanking applications
- Sizes: 1/2" to 5" (3000 PSI) | 1/2" to 3" (6000 PSI)
- Bolt thread: M8 to M16 (3000 PSI) | M8 to M30 (6000 PSI)
| SAE_SERIES | S.A.E | C | D | E | F | H | M |
| SAE 3000 PSI | 1/2" | 38.1 | 56 | 17.48 | 48 | 16 | M 8 |
| SAE 3000 PSI | 3/4" | 47.63 | 65 | 22.23 | 50 | 16 | M 10 |
| SAE 3000 PSI | 1" | 52.37 | 70 | 26.19 | 60 | 19 | M 10 |
| SAE 3000 PSI | 1-1/4" | 58.72 | 79 | 30.18 | 68 | 18 | M 10 |
| SAE 3000 PSI | 1-1/2" | 69.85 | 93 | 35.71 | 78 | 20 | M 12 |
| SAE 3000 PSI | 2" | 77.77 | 102 | 42.88 | 90 | 20 | M 12 |
| SAE 3000 PSI | 2-1/2" | 88.9 | 114 | 50.8 | 105 | 20 | M 12 |
| SAE 3000 PSI | 3" | 106.38 | 134 | 61.93 | 124 | 24 | M 16 |
| SAE 3000 PSI | 3-1/2" | 120.65 | 152 | 69.85 | 136 | 22 | M 16 |
| SAE 3000 PSI | 4" | 130.18 | 162 | 77.77 | 146 | 25 | M 16 |
| SAE 3000 PSI | 5" | 152.4 | 190 | 92.08 | 170 | 28 | M 16 |
| SAE 6000 PSI | 1/2" | 40.49 | 56 | 18.24 | 48 | 16 | M 8 |
| SAE 6000 PSI | 3/4" | 50.8 | 71 | 23.8 | 60 | 19 | M 10 |
| SAE 6000 PSI | 1" | 57.15 | 81 | 27.76 | 70 | 24 | M 12 |
| SAE 6000 PSI | 1-1/4" | 66.68 | 95 | 31.75 | 78 | 27 | M 14 |
| SAE 6000 PSI | 1-1/2" | 79.38 | 112 | 36.5 | 94 | 30 | M 16 |
| SAE 6000 PSI | 2" | 96.82 | 134 | 44.45 | 114 | 28 | M 20 |
| SAE 6000 PSI | 2-1/2" | 123.8 | 180 | 58.8 | 150 | 45 | M 24 |
| SAE 6000 PSI | 3" | 152.4 | 208 | 71.4 | 178 | 50 | M 30 |
