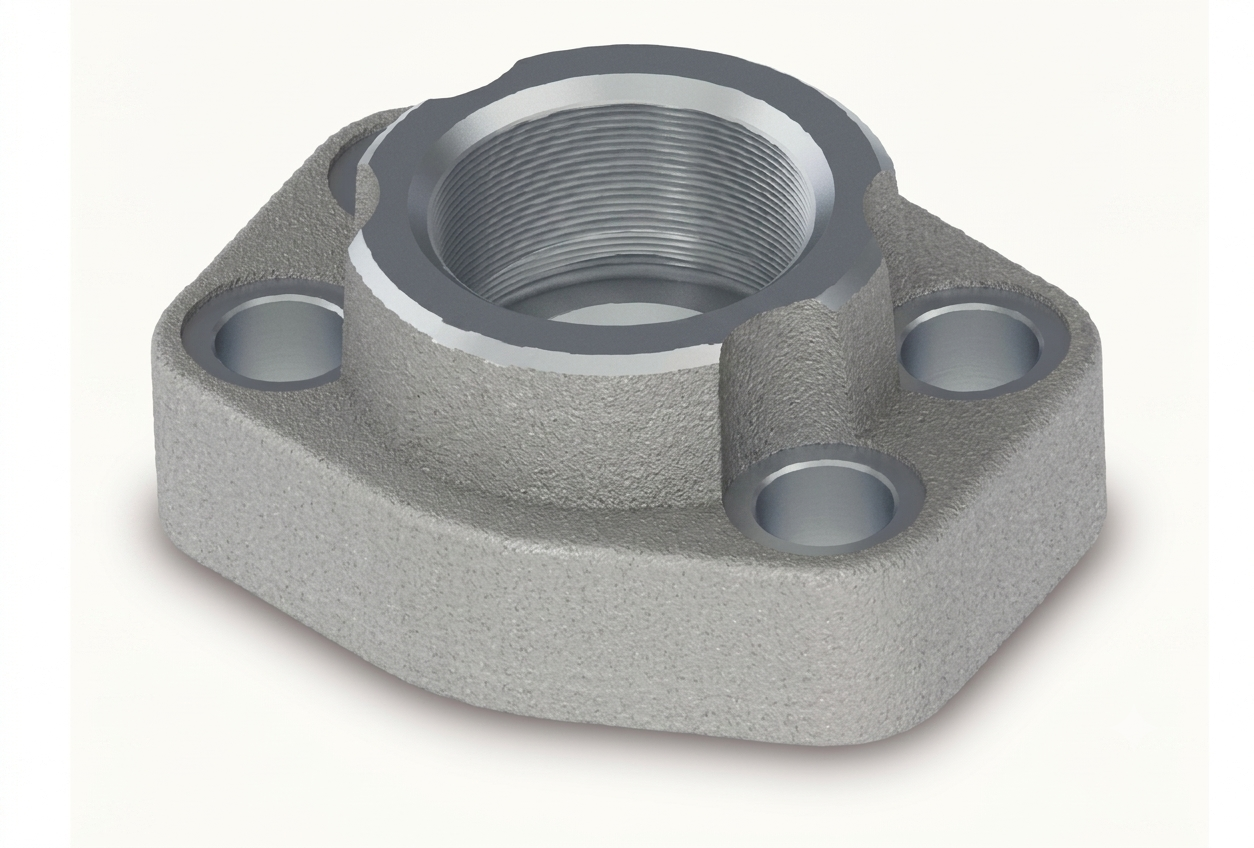

Port Adaptor SAE Pipe Threaded Flange Mounting with O-Ring
Designed for high-integrity hydraulic connections, these SAE flange mounting adaptors feature BSP pipe thread with a face-seal O-ring for superior leak resistance across a wide pressure range. Available in both SAE 3000 PSI and SAE 6000 PSI series, covering port sizes from 1/2" to 5" — suited to pumps, valves, and manifolds across mobile and industrial applications.
- SAE Code 61 (3000 PSI) series and SAE 62 (6000 PSI) series
- Thread sizes: R 1/2" to R 5" (3000 PSI) | R 1/2" to R 3" (6000 PSI)
- O-ring face seal for high-pressure integrity
- Bolt thread: M8 to M16 (3000 PSI) | M8 to M30 (6000 PSI)
- Suitable for mobile plant, industrial hydraulics, and pump manifolds
| SAE_SERIES | A | M | O-RING |
| SAE 3000 PSI | R 1/2" | M 8X30 | 18.66X3.53 |
| SAE 3000 PSI | R 3/4" | M 10X35 | 25X3.53 |
| SAE 3000 PSI | R 1" | M 10X35 | 32.92X3.53 |
| SAE 3000 PSI | R1 1/4" | M 10X40 | 37.7X3.53 |
| SAE 3000 PSI | R1 1/2" | M 12X45 | 47.22X3.53 |
| SAE 3000 PSI | R 2" | M 12X45 | 56.75X3.53 |
| SAE 3000 PSI | R 2-1/2" | M 12X45 | 69.45X3.53 |
| SAE 3000 PSI | R 3" | M 16X50 | 85.32X3.53 |
| SAE 3000 PSI | R 3-1/2" | M 16X50 | 98.02X3.53 |
| SAE 3000 PSI | R 4" | M 16X50 | 110.72X3.53 |
| SAE 3000 PSI | R 5" | M 16X55 | 136.12X3.53 |
| SAE 6000 PSI | R 1/2" | M 8X30 | 18.66X3.53 |
| SAE 6000 PSI | R 3/4" | M 10X35 | 25X3.53 |
| SAE 6000 PSI | R 1" | M 12X45 | 32.92X3.53 |
| SAE 6000 PSI | R1 1/4" | M 14X45 | 37.7X3.53 |
| SAE 6000 PSI | R1 1/2" | M 16X50 | 47.22X3.53 |
| SAE 6000 PSI | R 2" | M 20X65 | 56.75X3.53 |
| SAE 6000 PSI | R 2 1/2" | M 24x75 | 69.45x3.53 |
| SAE 6000 PSI | R 3" | M 30x80 | 85.32x3.53 |
