Stauff Oil Level Switches

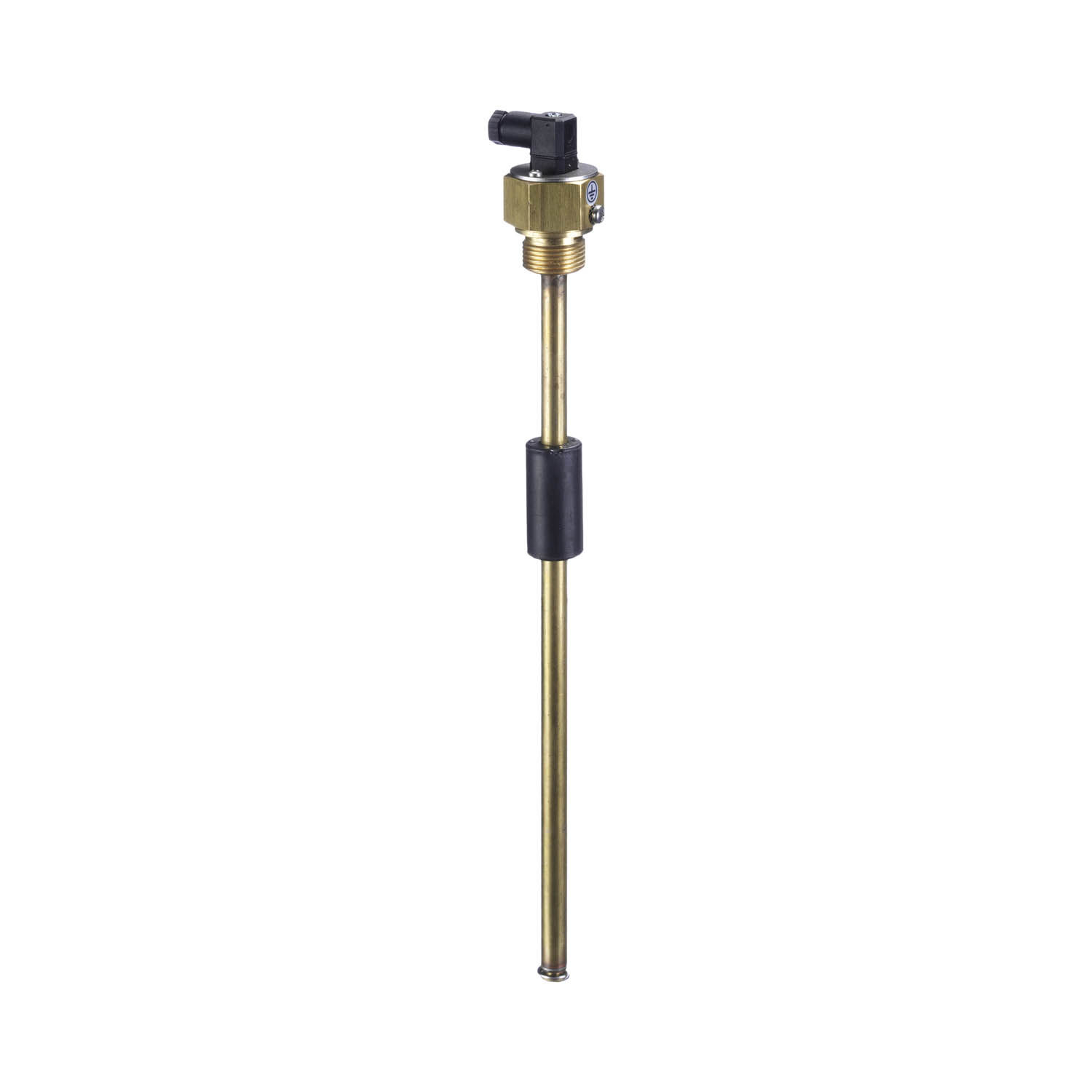

The STAUFF level temperature switch from the SLTS series have a unique design and modularity. One of their great advantages is that the end user can adapt the switching level individually. The internal support wire for the level and temperature switches allows fast and easy position changes of the level switch. Suitable for mineral oil and HFC liquids, other liquids on request. Available with 1 or 2 level contacts. Optional integrated temperature sensor.
Specifications
- Stem material: brass
- Float and sealing material: NBR (Buna-N®)
- Maximum operating temperature: +80°C
- Max. current — level contact: 0.5 A
- Max. current — temperature contact: 2.0 A
- Contact load — level contact: 10 VA
- Fluid specific gravity: ≥ 0.8 kg/dm³
- Temperature hysteresis: +18°C
- Protection rating: IP 65
| Item Designation | Stauff Product No. | Item Description |
| SLTS-12-060-H41-L251-B12-G048-CB/2 | 1910000472 | Level-Temperature Switch Switching Temperature: 60°C / 140°F with Two Level Contacts Process Connection: G3/4 |
| SLTS-12-060-H41-L251-N16-G115-CB/2 | 1910000749 | Level-Temperature Switch Switching Temperature: 60°C / 140°F with Two Level Contacts Process Connection: 1 NPT |
| SLTS-12-060-H41-O-B12-G048-CB/2 | 1910001627 | Level-Temperature Switch Switching Temperature: 60°C / 140°F with Upper Level Contact Process Connection: G3/4 |
| SLTS-12-060-O-L251-B12-G048-CB/2 | 1910000471 | Level-Temperature Switch Switching Temperature: 60°C / 140°F with Lower Level Contact Process Connection: G3/4 |
| SLTS-12-070-H41-L251-B12-G048-CB/2 | 1910000474 | Level-Temperature Switch Switching Temperature: 70°C / 158°F with Two Level Contacts Process Connection: G3/4 |
| SLTS-12-070-H41-O-B12-G048-CB/2 | 1910001659 | Level-Temperature Switch Switching Temperature: 70°C / 158°F with Upper Level Contact Process Connection: G3/4 |
| SLTS-12-070-O-L251-B12-G048-CB/2 | 1910000473 | Level-Temperature Switch Switching Temperature: 70°C / 158°F with Lower Level Contact Process Connection: G3/4 |
| SLTS-12-O-H41-L251-B12-G048-CB/2 | 1910000831 | Level-Temperature Switch without Temperature Switch with Two Level Contacts Process Connection: G3/4 |
| SLTS-12-O-O-L251-B12-G048-CB/2 | 1910000830 | Level-Temperature Switch without Temperature Switch with Lower Level Contact Process Connection: G3/4 |
| SLTS-18-060-H41-L403-B12-G048-CB/2 | 1910000476 | Level-Temperature Switch Switching Temperature: 60°C / 140°F with Two Level Contacts Process Connection: G3/4 |
| SLTS-18-060-H41-L403-N16-G115-CB/2 | 1910003133 | Level-Temperature Switch Switching Temperature: 60°C / 140°F with Two Level Contacts Process Connection: 1 NPT |
| SLTS-18-060-O-L403-B12-G048-CB/2 | 1910000475 | Level-Temperature Switch Switching Temperature: 60°C / 140°F with Lower Level Contact Process Connection: G3/4 |
| SLTS-18-070-H41-L403-B12-G048-CB/2 | 1910000478 | Level-Temperature Switch Switching Temperature: 70°C / 158°F with Two Level Contacts Process Connection: G3/4 |
| SLTS-18-070-O-L403-B12-G048-CB/2 | 1910000477 | Level-Temperature Switch Switching Temperature: 70°C / 158°F with Lower Level Contact Process Connection: G3/4 |
| SLTS-18-O-H41-L403-B12-G048-CB/2 | 1910000833 | Level-Temperature Switch without Temperature Switch with Two Level Contacts Process Connection: G3/4 |
| SLTS-18-O-O-L403-B12-G048-CB/2 | 1910000832 | Level-Temperature Switch without Temperature Switch with Lower Level Contact Process Connection: G3/4 |
