Stauff Pressure Switches

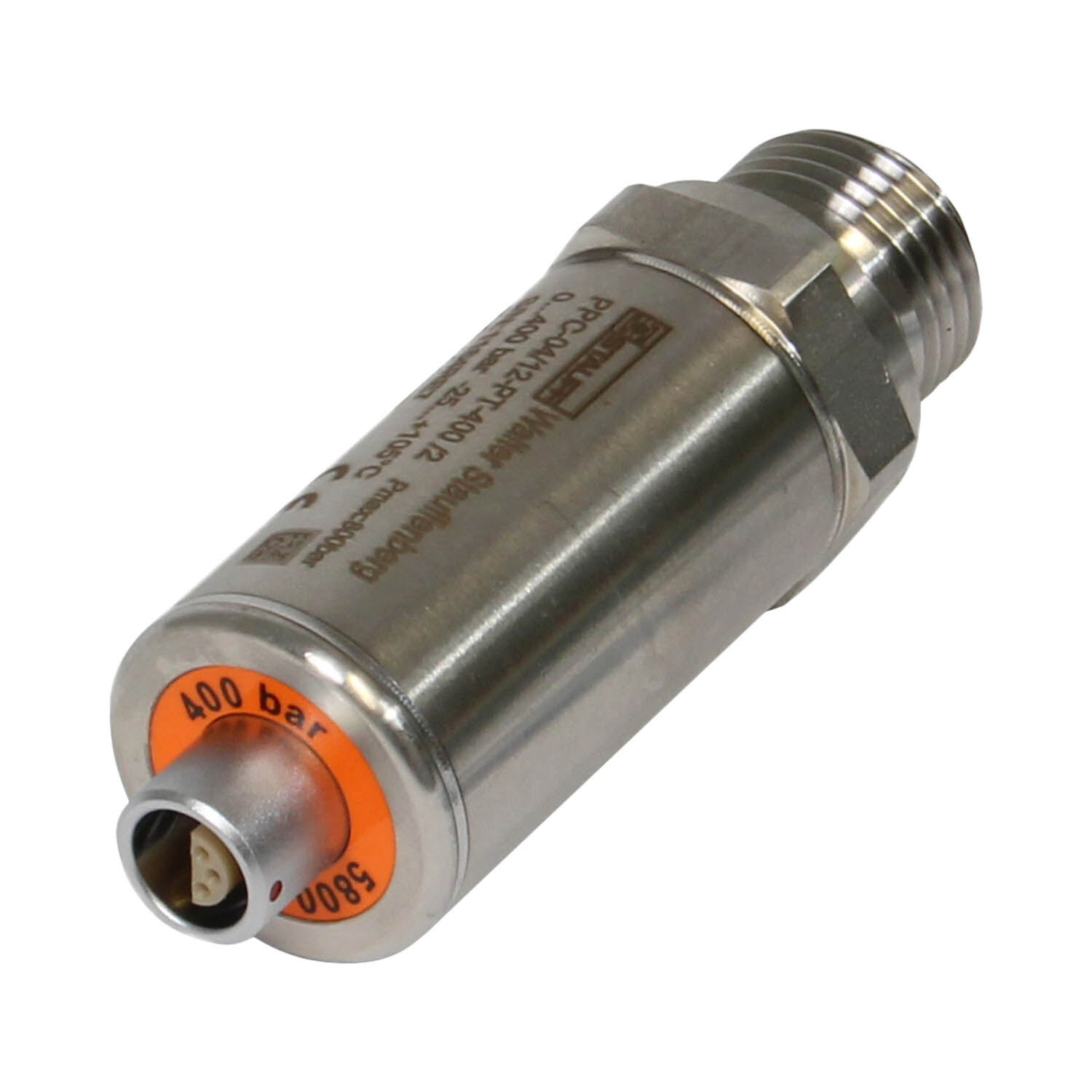

  • Image of Stauff Sensor-PPC-04/12-PT pressure switch — hydraulic component for mobile and industrial applications, supplied by Fluid Power Distributors (FPD), Hamilton New Zealand — hydraulic specialists for construction, agriculture, forestry, and industrial sectors across New Zealand
  • Image of Stauff Sensor-PPC-04/12-PT pressure switch — hydraulic component for mobile and industrial applications, supplied by Fluid Power Distributors (FPD), Hamilton New Zealand — hydraulic specialists for construction, agriculture, forestry, and industrial sectors across New Zealand

Technical Data

Pressure Switch Specifications (949 Kb)

Stauff Pressure Switches

The STAUFF pressure/temperature sensors Sensor-PPC-04/12-PT with 5-pin connection can be used with all hydraulic testers from the PPC series. The CAN pressure/temperature sensors Sensor-PPC-CAN-PT were developed specifically for the CAN hydraulic testers. The sensors use the CANopen protocol for transferring the values to the CAN hydraulic testers. In addition, the current temperature value can be measured and displayed on the hydraulic tester.

Enquire Now

ModelDescription
PK6523Pressure switch, 0-25 bar
PK6521Pressure switch, 13-250 bar
PK6520Pressure switch, 20-400 bar
PT5401Pressure transducer, 0-250 bar
PT5400Pressure transducer, 0-400 bar
E30094Protective cover
Stauff Item No.Item DesignationProduct Description
1810000061Sensor-PPC-04/12-PT-015/2Ppc04/12-015-Pt -1 To 15Bar Press.Trans.
1810000093Sensor-PPC-04/12-PT-015/2-CAL1 To 15 Bar Press. Trans.
1810000268Sensor-PPC-04/12-PT-060/2Pressure/Temperature Sensor for use with analogue Hydraulic Tester Pressure Range: 0 > 60 Bar
1810000269Sensor-PPC-04/12-PT-060/2-CALPressure/Temperature Sensor for use with analogue Hydraulic Tester Pressure Range: 0 > 60 Bar with Calibration Certificate
1810000208Sensor-PPC-04/12-PT-150/2Ppc04/12-150-Pt 0 - 150Bar Press.Trans.
1810000209Sensor-PPC-04/12-PT-150/2-CALPressure/Temperature Sensor for use with analogue Hydraulic Tester Pressure Range: 0 > 150 Bar with Calibration Certificate
1810000063Sensor-PPC-04/12-PT-400/2Ppc04/12-400-Pt 0 To 400Bar Press.Trans.
1810000095Sensor-PPC-04/12-PT-400/2-CALPressure/Temperature Sensor for use with analogue Hydraulic Tester Pressure Range: 0 > 400 Bar with Calibration Certificate
1810000064Sensor-PPC-04/12-PT-600/2Ppc04/12-600-Pt 0 To 600 Bar Press. Trans.
1810000096Sensor-PPC-04/12-PT-600/2-CALPressure/Temperature Sensor for use with analogue Hydraulic Tester Pressure Range: 0 > 600 Bar with Calibration Certificate
1810000270Sensor-PPC-04/12-PT-601/2Pressure/Temperature Sensor for use with analogue Hydraulic Tester Pressure Range: 0 < 1000Bar
1810000271Sensor-PPC-04/12-PT-601/2-CALPressure/Temperature Sensor for use with analogue Hydraulic Tester Pressure Range: 0 < 1000Bar with Calibration Certificate
1810000328Sensor-PPC-CAN-PT-016Ppc-Can-Pt-016 - Sensor Can-Pt-(-1-16) Bar
1810000329Sensor-PPC-CAN-PT-016-CALPressure/Temperature Sensor for use with CAN Hydraulic Tester Pressure Range: -1 > 16 Bar with Calibration Certificate
1810000330Sensor-PPC-CAN-PT-060Ppc-Can-Pt-060 - Sensor Can-Pt-60 Bar
1810000331Sensor-PPC-CAN-PT-060-CALPressure/Temperature Sensor for use with CAN Hydraulic Tester Pressure Range: 0 > 60 Bar with Calibration Certificate
1810000332Sensor-PPC-CAN-PT-160Sensor Can-Pt-160 Bar
1810000333Sensor-PPC-CAN-PT-160-CALPressure/Temperature Sensor for use with CAN Hydraulic Tester Pressure Range: 0 > 160 Bar with Calibration Certificate
1810000334Sensor-PPC-CAN-PT-400Sensor Can-Pt-400 Bar
1810000335Sensor-PPC-CAN-PT-400-CALSensor Can-Pt-400 Bar Calibrated
1810000336Sensor-PPC-CAN-PT-600Sensor Can-Pt-600 Bar
1810000337Sensor-PPC-CAN-PT-600-CALPressure/Temperature Sensor for use with CAN Hydraulic Tester Pressure Range: 0 > 600 Bar with Calibration Certificate
1810000338Sensor-PPC-CAN-PT-601Pressure/Temperature Sensor for use with CAN Hydraulic Tester Pressure Range: 0 < 1000Bar
