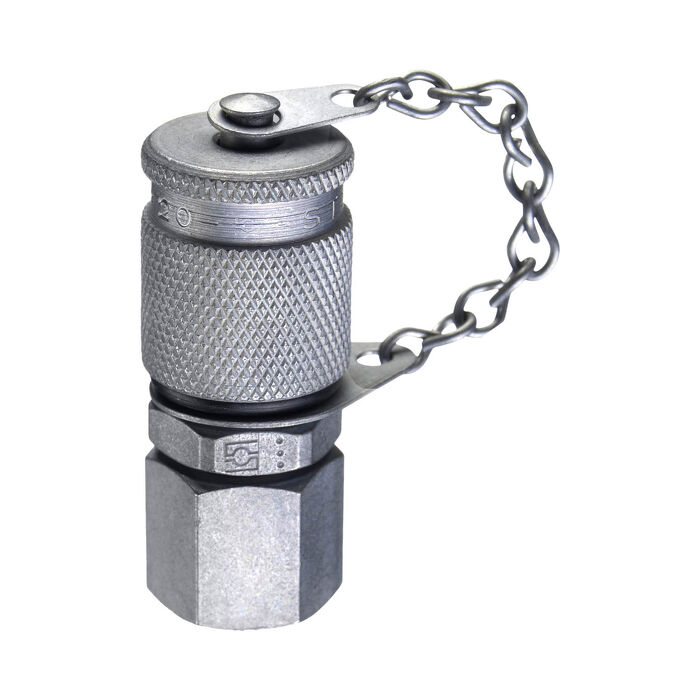

Stauff Test 20 Couplings with 24° Taper / O-Ring (DKO)
Test couplings with ball valve (SMK) and poppet valve (SKK) and accessories from the STAUFF Test 20 series with connection thread M16x2 according to ISO 15171-2 with 24° taper / O-ring (DKO) according to ISO 8434-1 and ISO 2353. Available in steel with zinc/nickel coating or in V2A and V4A stainless steel. Maximum operating pressure of 630 bar. Coupling under pressure up to 400 bar. Self-locking knurled cap made of metal. Optionally with hexagonal cap made of metal or plastic cap.
| Item Description | Item Designation | Stauff Product # |
| Test 20 Coupling Din 2353 08L M14X1.5 | SKK-20-08L-B-K-W3 | 1210026010 |
| Gas - Test 20 Adaptor Din2353 8S Female | SKK-20-08S-V-K-GAS-W3 | 1210026704 |
| Test Coupling 24 Deg Cone Fitting | SKK-20-10L-B-K-W3 | 1210026179 |
| Test Coupling Stauff Test 20 with 24° Taper / O-Ring Light Series 10L Self Lock Metal Protective Cap FPM-Seal Steel, Zinc-Nickel | SKK-20-10L-V-K-W3 | 1210026723 |
| Test Coupling Stauff Test 20 with 24° Taper / O-Ring Light Series 12L Self Lock Metal Protective Cap FPM-Seal Steel, Zinc-Nickel | SKK-20-12L-V-K-W3 | 1210022085 |
| Test Coupling Stauff Test 20 with 24° Taper / O-Ring Heavy Series 12S Self Lock Metal Protective Cap NBR-Seal Steel, Zinc-Nickel | SKK-20-12S-B-K-W3 | 1210026183 |
| Test Coupling 7/8-14 Female | SKK-20-JIC5/8-K-W3 | 1210027381 |
| Test Coupling 20 Orfs Series 04 Self Lock Metal Protective Cap Fpm-Seal | SMK-20-04-ORFS-W3 | 1210026235 |
| Coupling Test 20 X Orfs 1 1/16 Female | SMK-20-06-ORFS-W3 | 1210026237 |
| Test 20 Coupling-Din 2353 06L M12X1.5 | SMK-20-06L-B-K-W3 | 1210026024 |
| Test 20 Coupling-Din 2353 6S M14X1.5 | SMK-20-06S-B-K-W3 | 1210026025 |
| Test Coupling Bulkheads - Orfs | SMK-20-08-ORFS-W3 | 1210027055 |
| Test 20 Coupling-Din 2353 08L M14X1.5 | SMK-20-08L-B-K-W3 | 1210026027 |
| Test 20 Coupling-Din 2353 8S M16X1.5 | SMK-20-08S-B-K-W3 | 1210026028 |
| Test Fitting | SMK-20-08S-B-K-W5 | 1210003644 |
| Test 20 Coupling-Din 2353 10L M16X1.5 | SMK-20-10L-B-K-W3 | 1210026034 |
| Test 20 Coupling-Din 2353 10S M18X1.5 | SMK-20-10S-B-K-W3 | 1210026039 |
| Test Coupling Stauff Test 20 with Standpipe Self Lock Metal Protective Cap NBR-Seal Steel, Zinc-Nickel | SMK-20-12-S-W3 | 1210026042 |
| Test 20 Coupling-Din 2353 12L M18X1.5 | SMK-20-12L-B-K-W3 | 1210026041 |
| Test 20 Coupling-Din 2353 12S M20X1.5 | SMK-20-12S-B-K-W3 | 1210026044 |
| Test 20 Coupling Din 2353 12S M20X1.5 316Ti S/S | SMK-20-12S-B-K-W5 | 1210001315 |
| Test 20 Coupling-Din 2353 14S M22X1.5 | SMK-20-14S-B-K-GS-W3 | 1210026248 |
| Test 20 Coupling-Din 2353 15L M22X1.5 | SMK-20-15L-B-K-GS-W3 | 1210026046 |
| Test 20 Coupling-Din 2353 15L Viton | SMK-20-15L-V-K-GS-W3 | 1210026047 |
| Test 20 Coupling-Din 2353 16S M24X1.5 | SMK-20-16S-B-K-GS-W3 | 1210026049 |
| Test 20 Coupling-Din 2353 16S Viton | SMK-20-16S-V-K-GS-W3 | 1210027194 |
| Test 20 Coupling-Din 2353 18L M26X1.5 | SMK-20-18L-B-K-GS-W3 | 1210026051 |
| Test 20 Coupling-Din 2353 20S M30X2 | SMK-20-20S-B-K-GS-W3 | 1210026053 |
| Smk20-20S-Pk-V4A-Gs | SMK-20-20S-B-K-GS-W5 | 1210001954 |
| Test 20 Coupling-Din 2353 22L M30X2 | SMK-20-22L-B-K-GS-W3 | 1210026055 |
| Test 20 Coupling-Din 2353 25S M36X2 | SMK-20-25S-B-K-GS-W3 | 1210026057 |
| Test 20 Coupling-Din 2353 28L M36X2 | SMK-20-28L-B-K-GS-W3 | 1210026058 |
| Test 20 Coupling-Din 2353 30S M42X2 | SMK-20-30S-B-K-GS-W3 | 1210026253 |
| Test 20 Coupling-Din 2353 35L M45X2 | SMK-20-35L-B-K-GS-W3 | 1210026254 |
| Test 20 Coupling-Din 2353 38S M52X2 | SMK-20-38S-B-K-GS-W3 | 1210026255 |
| Test 20 Coupling 42L M52X2 | SMK-20-42L-B-K-GS-W3 | 1210026256 |
| Test Coupling 1.7/8-12 Female | SMK-20-JIC1-1/2-K-GS-W3 | 1210027342 |
| Test Coupling 1.5/16-12 Female | SMK-20-JIC1-K-GS-W3 | 1210024132 |
| Test Coupling 3/4-16 Female | SMK-20-JIC1/2-K-W3 | 1210026278 |
| Test Coupling 7/16-20 Female - Epdm | SMK-20-JIC1/4-E-K-W3 | 1210027352 |
