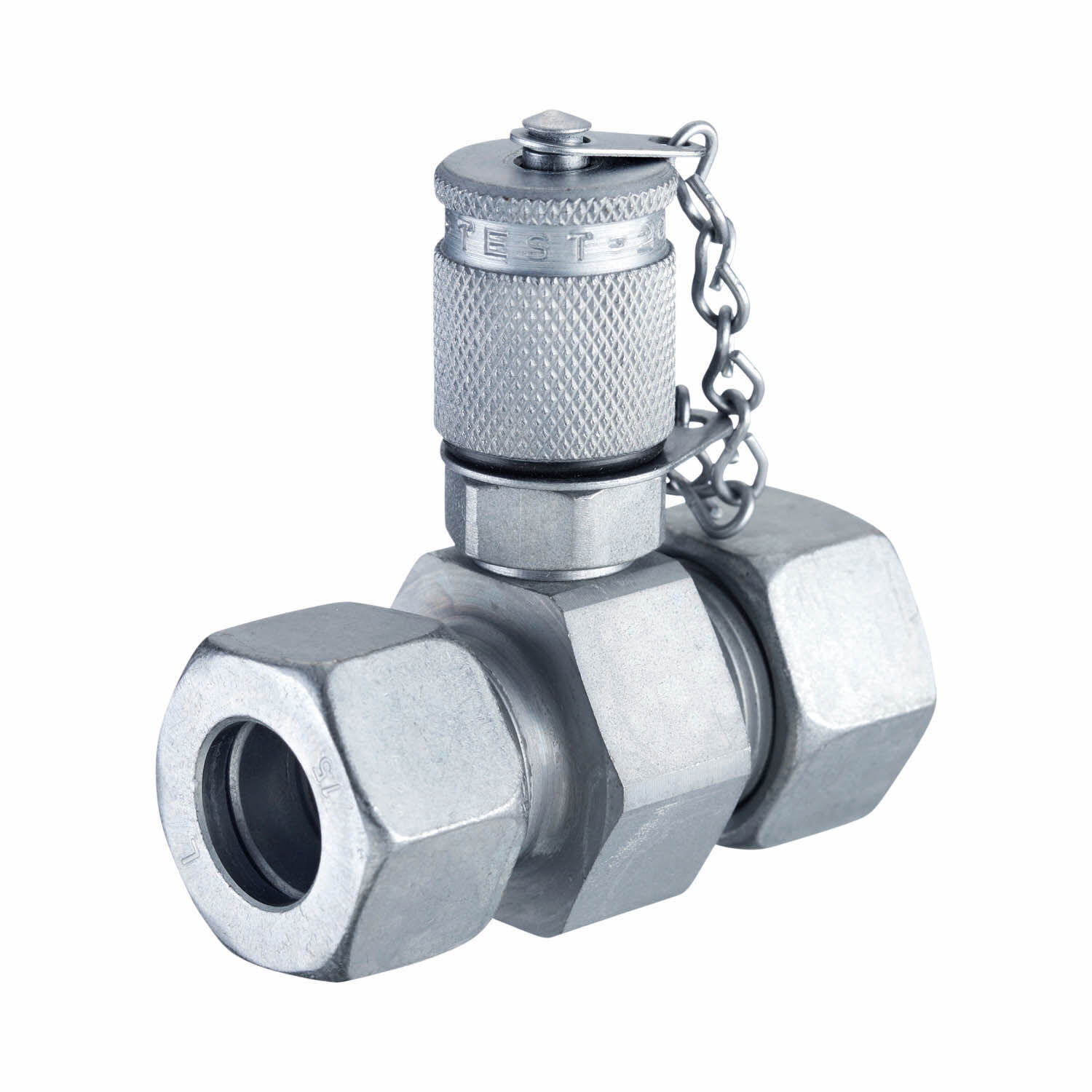

Stauff Test 20 Couplings with Straight 24° Tube Fitting
Test couplings with ball valve (SMK) and poppet valve (SKK) and accessories from the STAUFF Test 20 series with connection thread M16x2 according to ISO 15171-2 with straight 24° tube fitting according to ISO 8434-1 and ISO 2353. Available in steel with zinc/nickel coating or in V2A and V4A stainless steel. Maximum operating pressure of 630 bar. Coupling under pressure up to 400 bar. Self-locking knurled cap made of metal. Optionally with hexagonal cap made of metal or plastic cap.
| Item Description | Item Designation | Stauff Product # |
| Test 20 Coupling-Din 2353-06L M12X1,5 | SMK-20-06L-G-W3-MS | 1210026236 |
| Test 20 Coupling-Din 2523-06S M14X1.5 | SMK-20-06S-G-W3-MS | 1210027035 |
| Test 20 Coupling-Din 2353-08L M14X1.5 | SMK-20-08L-G-W3-MS | 1210026026 |
| Test 20 Coupling-Din 2523-08S M16X1.5 | SMK-20-08S-G-W3-MS | 1210026240 |
| 1/8" Npt Coupling 316Ti S/S | SMK-20-1/8NPT-D-W5 | 1210001659 |
| Test 20 Coupling-Din 2353-10L M16X1.5 | SMK-20-10L-G-W3-MS | 1210026033 |
| Test 20 Coupling-Din 2353-10S M18X1.5 | SMK-20-10S-G-W3-MS | 1210026038 |
| Test 20 Coupling-Din 2353-12L M18X1.5 | SMK-20-12L-G-W3-MS | 1210026040 |
| Test 20 Coupling-Din 2353-14S M22X1.5 | SMK-20-14S-G-W3-MS | 1210027158 |
| Test 20 Coupling-Din 2353-15L M22X1.5 | SMK-20-15L-G-W3-MS | 1210026045 |
| Test 20 Coupling-Din 2353-16S M24X1.5 | SMK-20-16S-G-W3-MS | 1210026048 |
| Test 20 Coupling-Din 2353-18L M26X1.5 | SMK-20-18L-G-W3-MS | 1210026050 |
| Test 20 Coupling-Din 2353-20S M30X2 | SMK-20-20S-G-W3-MS | 1210026052 |
| Test 20 Coupling-Din 2353-22L M30X2 | SMK-20-22L-G-W3-MS | 1210026054 |
| Test 20 Coupling-Din 2353-25S M36X2 | SMK-20-25S-G-W3-MS | 1210026056 |
| Test 20 Coupling-Din 2353-30S M42X2 | SMK-20-30S-G-W3-MS | 1210026252 |
| Test 20 Coupling-Din 2353-35L M45X2 | SMK-20-35L-G-W3-MS | 1210027262 |
| Test 20 Coupling-Din 2353-38S M52X2 | SMK-20-38S-G-W3-MS | 1210027271 |
| Test 20 Coupling-Din 2353-42L M52X2 | SMK-20-42L-G-W3-MS | 1210027278 |
