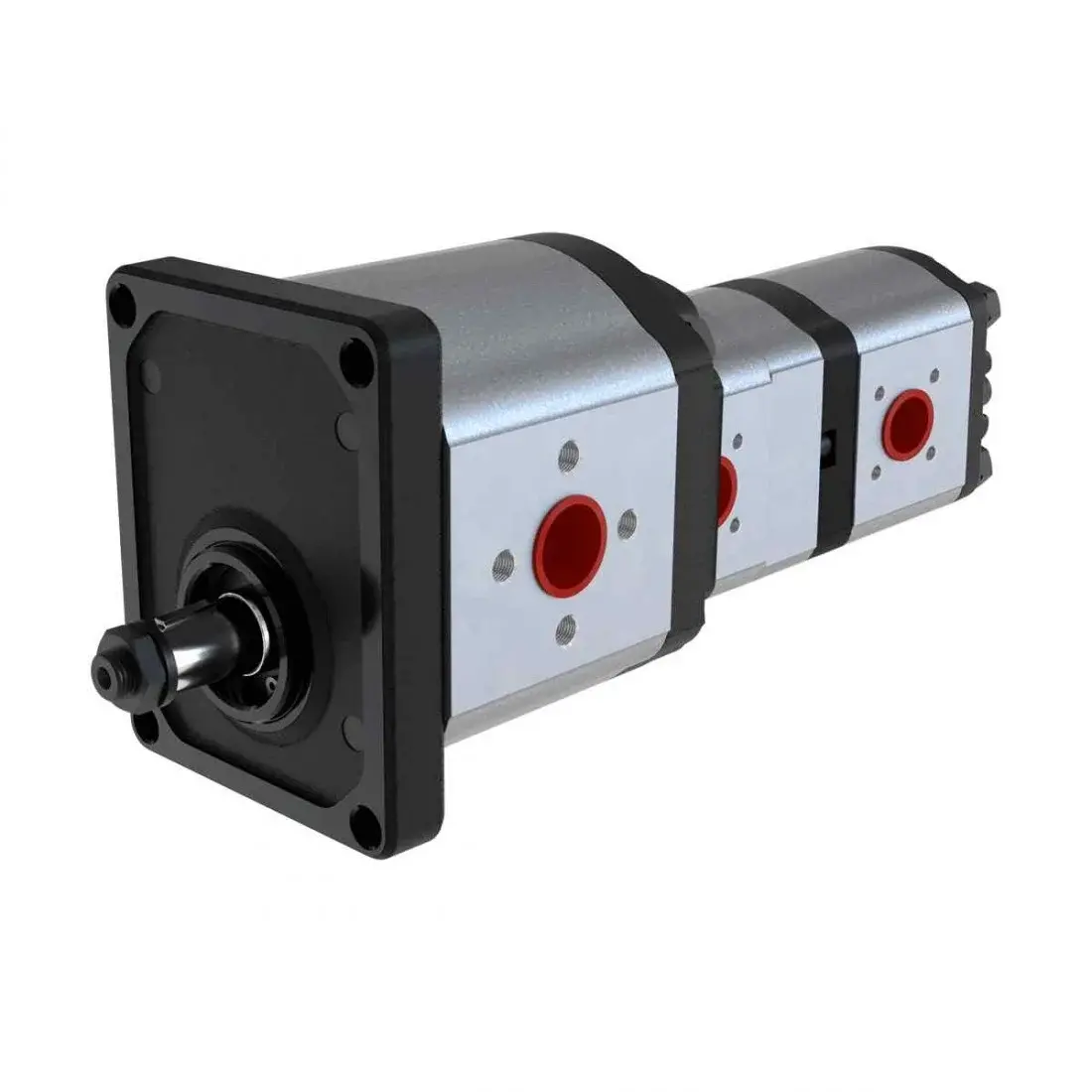

Blue Ascend Aluminium Body Tandem Pump – Group 30/20/20
Model: AP30 / AP20 / AP20
Three-section tandem with a Group 30 primary and two Group 20 secondaries on a single shaft. Provides three flow outputs from one drive — the highest-output configuration in the tandem range. For complex mobile or industrial systems with multiple hydraulic circuits.
Key Specifications:
- Gear type: Normal gear
- Primary displacement (Group 30): 17.0 – 100.0 cc/rev
- Maximum pressure: up to 250 bar
- Maximum speed: up to 3,000 rpm
- Body: Aluminium
- Note: Compartments connected — single fluid system
| Pump Type | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Notes |
| AP30.190/AP20.***/*** | 19,0 | 230 | 3000 | 500 |
| AP30.220/AP20.***/*** | 22,0 | 230 | 3000 | 500 |
| AP30.250/AP20.***/*** | 25,0 | 230 | 3000 | 500 |
| AP30.280/AP20.***/*** | 28,0 | 230 | 3000 | 500 |
| AP30.320/AP20.***/*** | 32,0 | 230 | 2750 | 500 |
| AP30.350/AP20.***/*** | 35,0 | 210 | 2750 | 500 |
| AP30.380/AP20.***/*** | 38,0 | 210 | 2750 | 500 |
| AP30.420/AP20.***/*** | 42,0 | 210 | 2750 | 500 |
| AP30.450/AP20.***/*** | 45,0 | 210 | 2500 | 500 |
| AP30.510/AP20.***/*** | 51,0 | 200 | 2250 | 500 |
| AP30.560/AP20.***/*** | 56,0 | 180 | 2000 | 500 |
| AP30.610/AP20.***/*** | 61,0 | 180 | 2500 | 400 |
| AP30.730/AP20.***/*** | 73,0 | 170 | 2500 | 400 |
| AP30.820/AP20.***/*** | 82,0 | 160 | 2000 | 400 |
| AP30.900/AP20.***/*** | 90,0 | 150 | 2000 | 400 |
| AP30.1000/AP20.***/*** | 100,0 | 140 | 2000 | 400 |
