Blue Ascend Aluminium Body Modular Pump – Group 20
Model: AP20 FAB / MAB / RAP

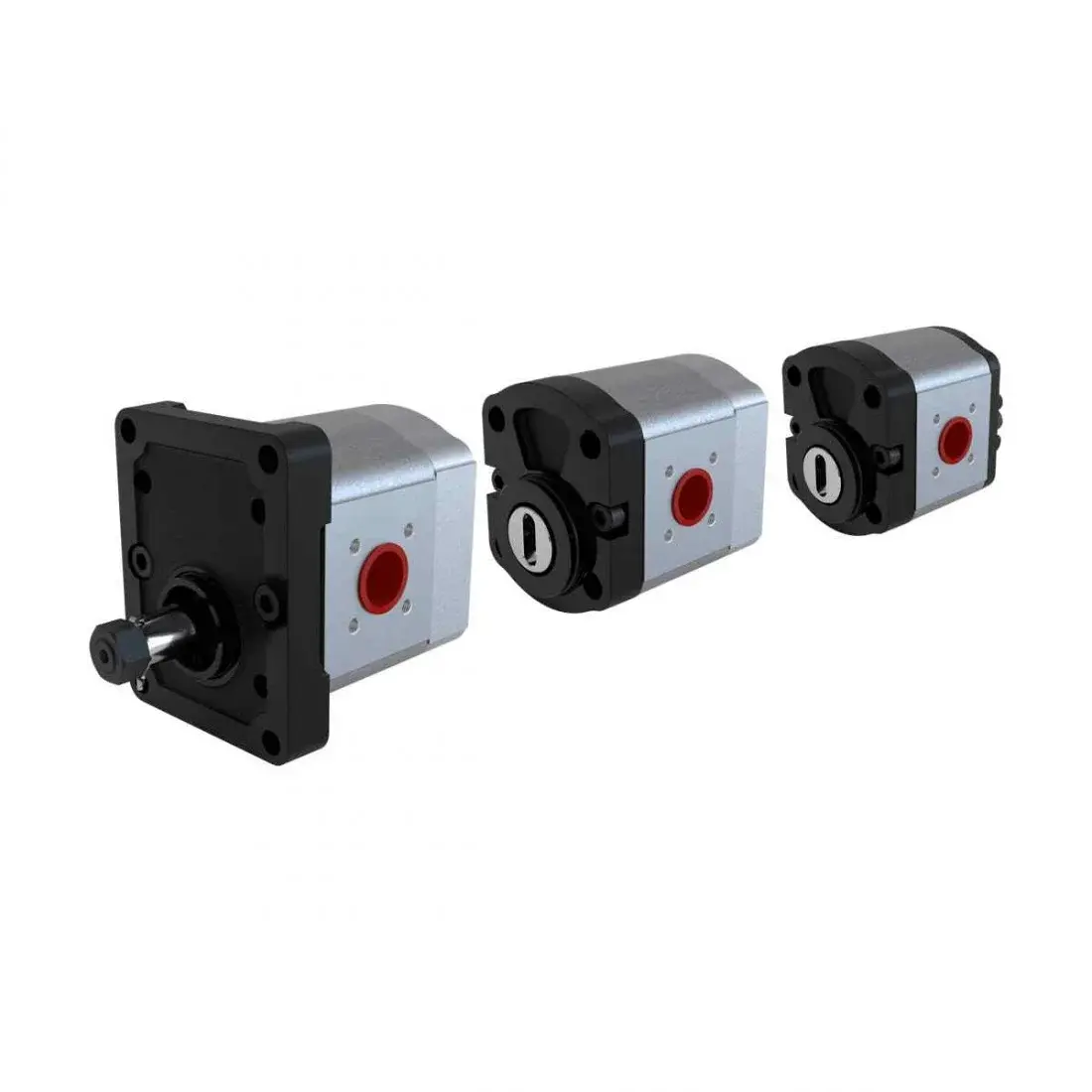

Modular pump sections designed to be combined into tandem configurations with differing displacements. Unlike standard tandem pumps, modular designs do not allow oil transfer between compartments — enabling different fluids or oils to be run in each section. Front, mid, and rear sections are available across the Group 20 displacement range.
Key Specifications:
- Gear type: Normal gear
- Displacement range: 3.9 – 40.0 cc/rev per section
- Maximum pressure: up to 250 bar
- Maximum speed: up to 3,500 rpm
- Body: Aluminium
- Note: Compartment isolation — no oil transfer between sections
| Pump Type | Configuration | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| AP20.040 | 3,9 | 250 | 3500 | 650 | See datasheet |
| AP20.060 | 5,9 | 250 | 3500 | 650 | |
| AP20.080 | 8,0 | 250 | 3500 | 650 | |
| AP20.095 | 9,4 | 250 | 3500 | 600 | |
| AP20.115 | 11,4 | 250 | 3000 | 600 | |
| AP20.140 | 13,9 | 250 | 3000 | 600 | |
| AP20.160 | 16,0 | 250 | 3000 | 600 | |
| AP20.190 | 19,2 | 250 | 3000 | 600 | |
| AP20.220 | 21,9 | 210 | 2500 | 600 | |
| AP20.250 | 24,8 | 190 | 2500 | 600 | |
| AP20.280 | 27,9 | 170 | 2200 | 600 | |
| AP20.320 | 32,0 | 160 | 2000 | 500 | |
| AP20.340 | 34,0 | 150 | 2000 | 500 | |
| AP20.380 | 38,0 | 140 | 1750 | 500 | |
| AP20.400 | 40,0 | 130 | 1750 | 500 |
