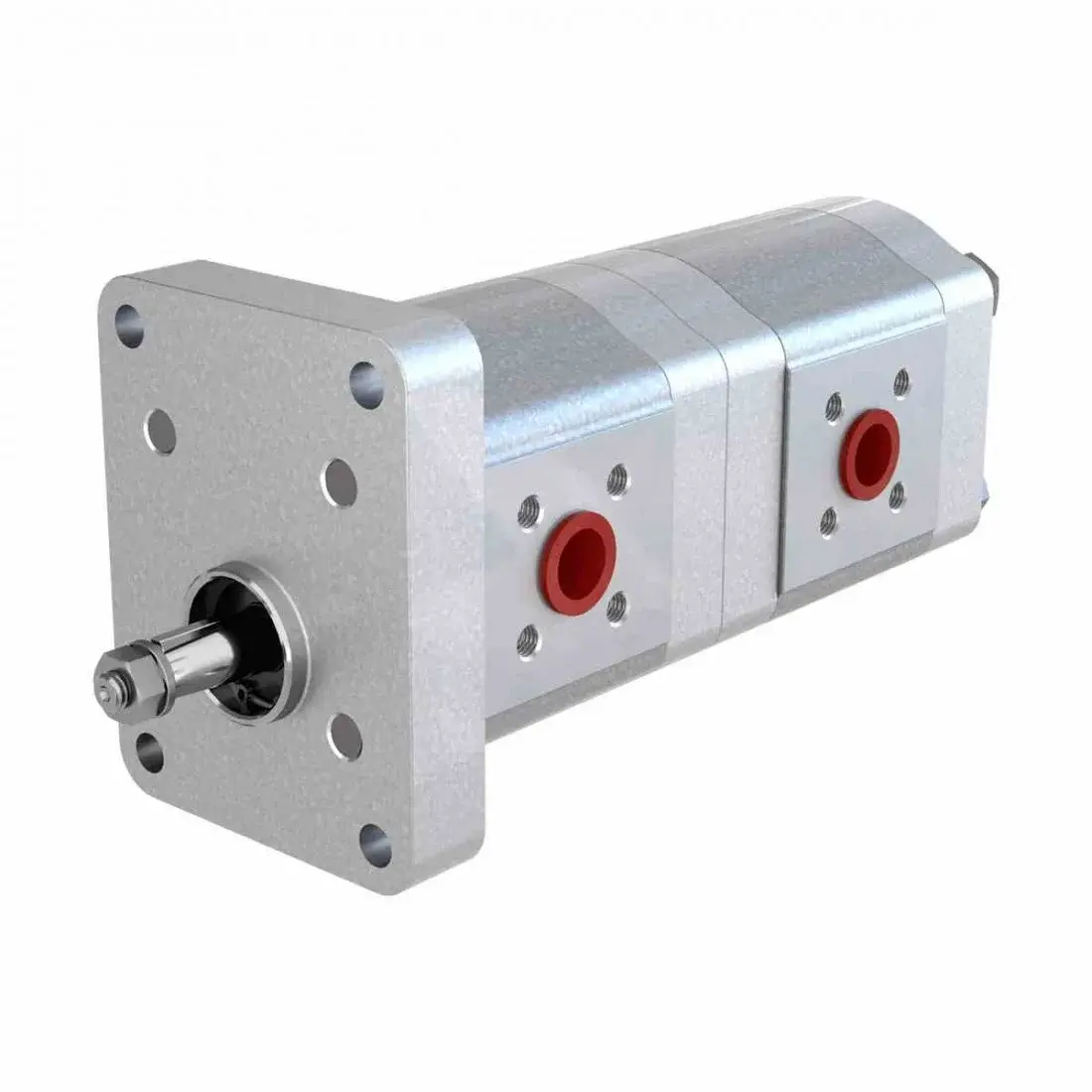

Blue Ascend Aluminium Tandem Pump – Group 10/10
Model: AP10 / AP10
Two compact Group 10 sections on a single drive shaft. Provides dual auxiliary outputs in a small package — ideal for pilot circuits, cooling fans, steering, or other low-flow secondary functions that need to be driven simultaneously.
Key Specifications:
- Gear type: Normal gear
- Displacement range: 0.9 – 9.5 cc/rev per section
- Maximum pressure: up to 220 bar
- Maximum speed: up to 4,000 rpm
- Body: Aluminium
- Note: Compartments connected — single fluid system
| Pump Type | Displacement(cc³/dev) | Max.Pressure(Bar) | Max.Speed(Rpm) | Min.Speed(Rpm) |
| AP10.009/*** | 0,9 | 220 | 4000 | 650 |
| AP10.012/*** | 1,2 | 220 | 4000 | 650 |
| AP10.017/*** | 1,7 | 220 | 4000 | 650 |
| AP10.023/*** | 2,3 | 220 | 4000 | 650 |
| AP10.027/*** | 2,7 | 220 | 4000 | 650 |
| AP10.032/*** | 3,2 | 220 | 4000 | 650 |
| AP10.038/*** | 3,8 | 220 | 3500 | 650 |
| AP10.043/*** | 4,3 | 220 | 3500 | 650 |
| AP10.050/*** | 5,0 | 220 | 3500 | 650 |
| AP10.059/*** | 5,9 | 220 | 3500 | 650 |
| AP10.063/*** | 6,3 | 220 | 3500 | 650 |
| AP10.078/*** | 7,8 | 210 | 3500 | 650 |
| AP10.095/*** | 9,5 | 200 | 3500 | 650 |
