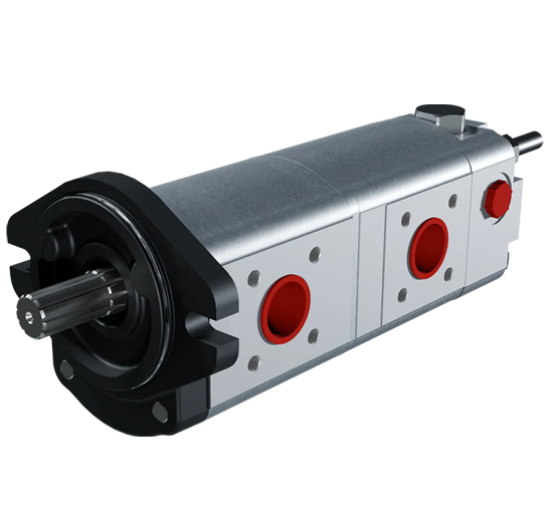

Blue Ascend Tandem Fan Pump – Group 20/20

Model: AP20/AP20

Dual-Section Fan Pump for Multi-Circuit Cooling Applications

The Blue Ascend AP20/AP20 is a tandem gear pump consisting of two Group 20 pump sections combined in a single unit. It allows a single power take-off point to supply two independent hydraulic circuits — ideal for machines where the cooling fan circuit must run alongside another auxiliary function.

Key Specifications:

Front section displacement: 3.9 – 40.0 cc/rev (16 options)
Rear section displacement: selectable from the AP20 range
Maximum pressure: 250 bar (smaller displacements); 130 bar (larger displacements)
Maximum speed: up to 3,500 rpm
Minimum speed: 500 – 650 rpm depending on displacement
Body type: aluminium

Typical Applications:

Dual-circuit hydraulic cooling applications in construction machinery, agricultural equipment, and industrial plant. Well suited to installations where packaging constraints or PTO availability limits the use of separate pump mounting.

Why FPD?

Tandem pump selection requires careful attention to combined flow demand and shaft loading. FPD's team can work through the application with you to confirm the right front/rear displacement combination.

Enquire Now

Front Section Model	Displacement (cc³/rev)	Max. Pressure (bar)	Max. Speed (rpm)	Min. Speed (rpm)	Note
AP20.040/***	3.9	250	3500	650	Rear section displacement selectable from AP20 range
AP20.060/***	5.9	250	3500	650	Rear section displacement selectable from AP20 range
AP20.080/***	8	250	3500	650	Rear section displacement selectable from AP20 range
AP20.095/***	9.4	250	3500	600	Rear section displacement selectable from AP20 range
AP20.115/***	11.4	250	3000	600	Rear section displacement selectable from AP20 range
AP20.140/***	13.9	250	3000	600	Rear section displacement selectable from AP20 range
AP20.148/***	14.8	250	3000	600	Rear section displacement selectable from AP20 range
AP20.160/***	16	250	3000	600	Rear section displacement selectable from AP20 range
AP20.190/***	19.2	250	3000	600	Rear section displacement selectable from AP20 range
AP20.220/***	21.9	210	2500	600	Rear section displacement selectable from AP20 range
AP20.250/***	24.8	190	2500	600	Rear section displacement selectable from AP20 range
AP20.280/***	27.9	170	2200	600	Rear section displacement selectable from AP20 range
AP20.320/***	32	160	2000	500	Rear section displacement selectable from AP20 range
AP20.340/***	34	150	2000	500	Rear section displacement selectable from AP20 range
AP20.380/***	38	140	1750	500	Rear section displacement selectable from AP20 range
AP20.400/***	40	130	1750	500	Rear section displacement selectable from AP20 range
