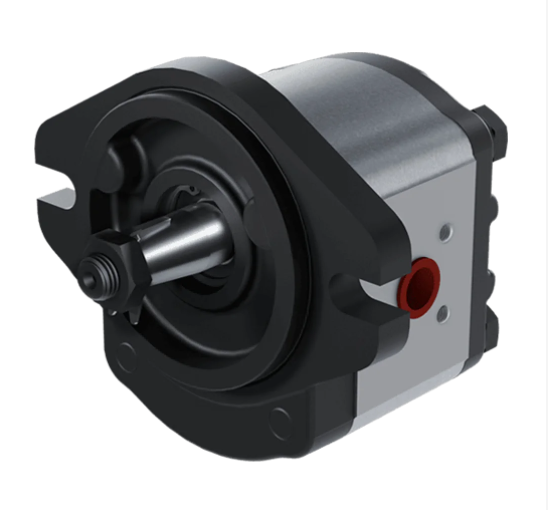

Blue Ascend Fan Pump – Group 20
Model: AP20
Compact Hydraulic Fan Pump for Vehicle Cooling Systems
The Blue Ascend AP20 is a compact, aluminium-body gear pump engineered specifically for hydraulic cooling fan circuits. With 15 displacement options from 3.9 to 40.0 cc/rev, it offers excellent flexibility across light to mid-weight vehicle and machine cooling applications.
Key Specifications:
- Displacement range: 3.9 – 40.0 cc/rev
- Maximum pressure: 250 bar (smaller displacements); 130 bar (larger displacements)
- Maximum speed: up to 3,500 rpm
- Minimum speed: 500 – 650 rpm depending on displacement
- Body type: aluminium
Typical Applications:
Dedicated cooling fan pump circuits in construction machinery, agricultural tractors and harvesters, mining equipment, road transport vehicles, and industrial plant.
Why FPD?
Whether you're specifying a new system or replacing an existing pump, FPD can advise on displacement selection and confirm fitment. Call (07) 849 5771 or email [email protected].
| Model | Displacement (cc³/rev) | Max. Pressure (bar) | Max. Speed (rpm) | Min. Speed (rpm) |
| AP20.040 | 3.9 | 250 | 3500 | 650 |
| AP20.060 | 5.9 | 250 | 3500 | 650 |
| AP20.080 | 8 | 250 | 3500 | 650 |
| AP20.095 | 9.4 | 250 | 3500 | 600 |
| AP20.115 | 11.4 | 250 | 3000 | 600 |
| AP20.140 | 13.9 | 250 | 3000 | 600 |
| AP20.160 | 16 | 250 | 3000 | 600 |
| AP20.190 | 19.2 | 250 | 3000 | 600 |
| AP20.220 | 21.9 | 210 | 2500 | 600 |
| AP20.250 | 24.8 | 190 | 2500 | 600 |
| AP20.280 | 27.9 | 170 | 2200 | 600 |
| AP20.320 | 32 | 160 | 2000 | 500 |
| AP20.340 | 34 | 150 | 2000 | 500 |
| AP20.380 | 38 | 140 | 1750 | 500 |
| AP20.400 | 40 | 130 | 1750 | 500 |
