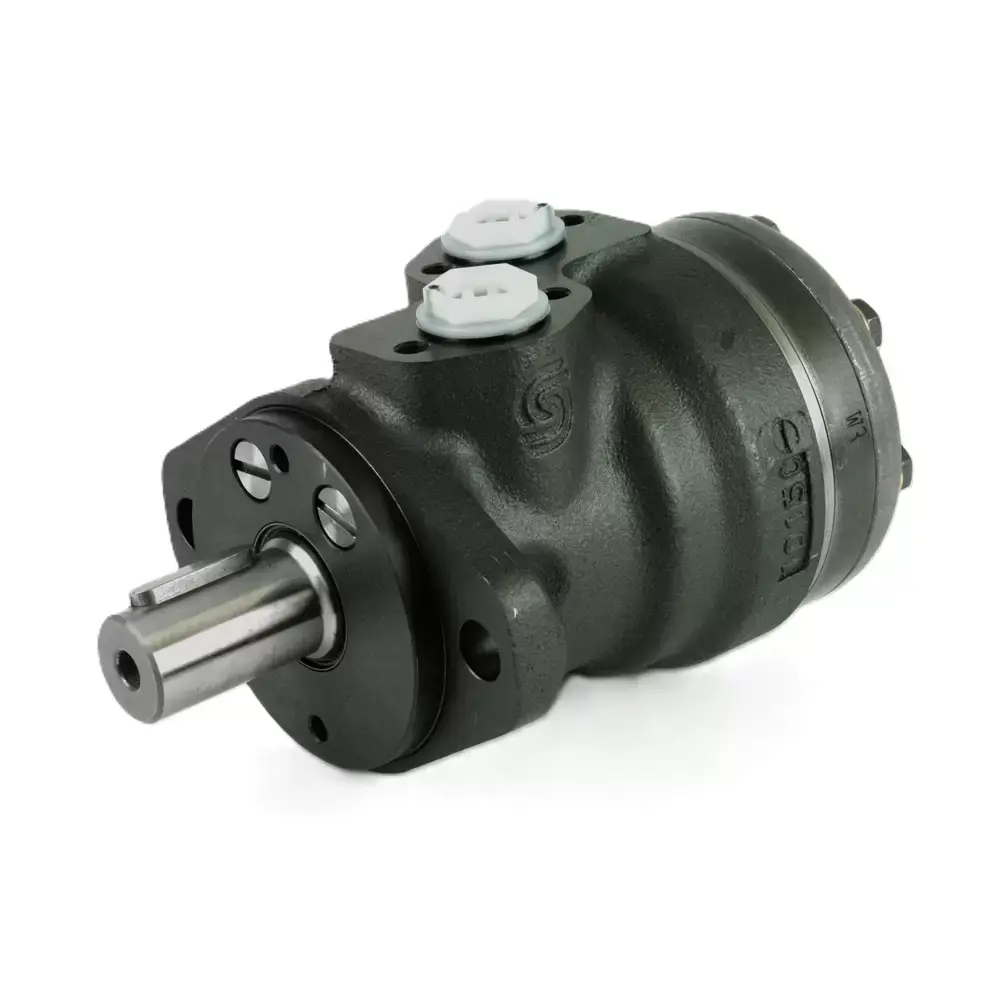

Danfoss OMR Series Geroler Motor
The Danfoss OMR is a compact, dependable geroler orbital motor that runs smoothly across its entire speed range while holding constant operating torque. Spanning displacements from 50 to 375 cc with continuous flows up to 60 L/min, it's a workhorse for agriculture, construction, materials handling and turf machinery.
Its high-pressure shaft seal handles high return pressure without a drain line — fewer fittings, simpler circuits. Output reaches 15 kW with pressure drops up to 200 bar, all in a robust package built for long life under demanding conditions.
Key features
- Displacement range 50–375 cc
- Continuous flow up to 60 L/min, output up to 15 kW (20.1 hp)
- Maximum pressure drop up to 200 bar
- High starting torque and constant torque across the speed range
- High-pressure shaft seal — high return pressure without a drain line
- Available in low-leakage and super-low-leakage versions
- High radial and axial bearing capacity
- Open- and closed-loop ready, suits a wide range of hydraulic fluids
Stocked and supported locally — talk to our team for the right OMR configuration. Request a quote or enquire today.
| Base Model | cm³/rev | Max. speed @ Max. intermittent flow (rev/min) | Max Pressure (bar) | Max Cont Torque (Nm) | Max Cont Oil Flow (l/min) | Power (KW) |
| OMR-50 | 51.6 | 970 | 175 | 100 | 40 | 7 |
| OMR-80 | 80.3 | 940 | 200 | 195 | 60 | 12.5 |
| OMR-100 | 99.8 | 750 | 200 | 240 | 60 | 13 |
| OMR-125 | 125.7 | 600 | 200 | 300 | 60 | 12.5 |
| OMR-160 | 159.6 | 470 | 200 | 380 | 60 | 12.5 |
| OMR-200 | 199.8 | 375 | 200 | 450 | 60 | 11 |
| OMR-250 | 249.3 | 300 | 200 | 540 | 60 | 10 |
| OMR-315 | 315.7 | 240 | 175 | 550 | 60 | 9 |
| OMR-375 | 372.6 | 200 | 150 | 580 | 60 | 7.5 |
