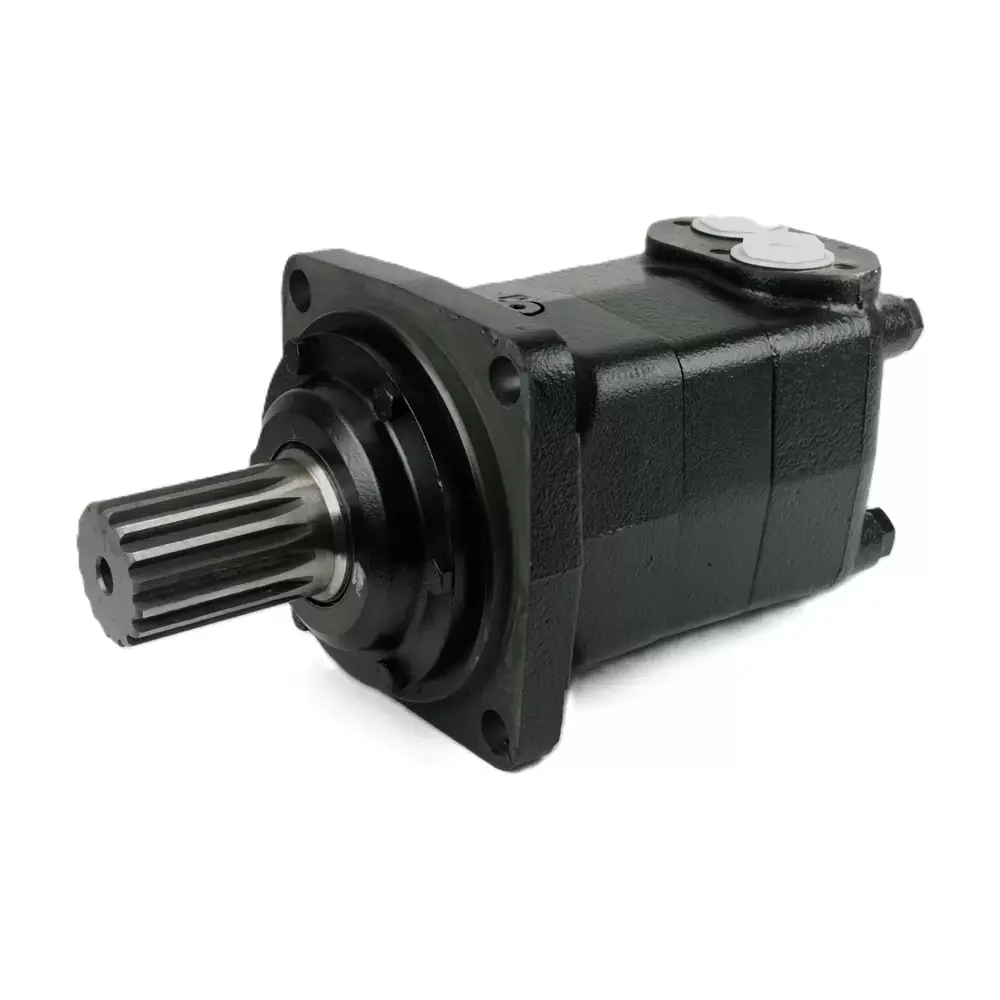

Danfoss OMV Series Disc Valve Motor
When you need serious torque at low shaft speeds — and you need it to keep running shift after shift — the Danfoss OMV is built for the job. This is a large-frame orbital motor engineered for high-load applications where reliability isn't negotiable. With continuous torque up to 1,880 Nm and a robust disc valve design, the OMV delivers the pulling power that heavy mobile and industrial equipment depends on. Its disc valve distributor is driven synchronously by the internal gear set through a cardan shaft, filling and emptying each working chamber precisely. The result is smooth, efficient operation and a long service life with minimal maintenance — exactly what you want in equipment that's hard to get to and expensive to have sitting idle.
We carry the OMV range in stock for fast supply across New Zealand, backed by technical support that helps you specify the right motor the first time.
Variants include the OMVW wheel motor and the OMVS short motor, so you can specify the build that fits your machine.
Applications
The OMV's combination of high torque and compact size makes it a workhorse across the sectors we supply:
- Agricultural machinery and implement drives
- Construction and civil plant
- Forestry equipment and processing heads
- Conveyor, winch and rotary drives
- Marine deck machinery
- General industrial low-speed, high-torque drives
Why buy your OMV from FPD
- In-stock NZ supply — local availability means less downtime waiting on parts
- Specify with confidence — our team knows orbital motors and will help you match displacement, mounting and shaft to your application
- Genuine Danfoss quality — proven disc valve design built for long service life
- Trade support — straightforward quoting and ordering for engineers, procurement and maintenance teams
Need an OMV motor specified or supplied?
Call our technical team — tell us your flow, pressure and torque requirements and we'll point you to the right size.
| Base Model | Description | cm3/rev | Max. speed @ Max. intermittent flow (rev/min) | Max Pressure (bar) | Max Cont Torque (Nm) | Max Cont Oil Flow (l/min) | Power (KW) |
| OMV 315 | Danfoss OMV Series disc valve orbital motor, size 315 | 314.5 | 630 | 300 | 920 | 160 | 42.5 |
| OMV 400 | Danfoss OMV Series disc valve orbital motor, size 400 | 400.9 | 600 | 300 | 1180 | 200 | 53.5 |
| OMV 500 | Danfoss OMV Series disc valve orbital motor, size 500 | 499.6 | 480 | 300 | 1460 | 200 | 53.5 |
| OMV 630 | Danfoss OMV Series disc valve orbital motor, size 630 | 629.1 | 380 | 300 | 1660 | 200 | 48 |
| OMV 800 | Danfoss OMV Series disc valve orbital motor, size 800 | 801.8 | 300 | 300 | 1880 | 200 | 42.5 |
