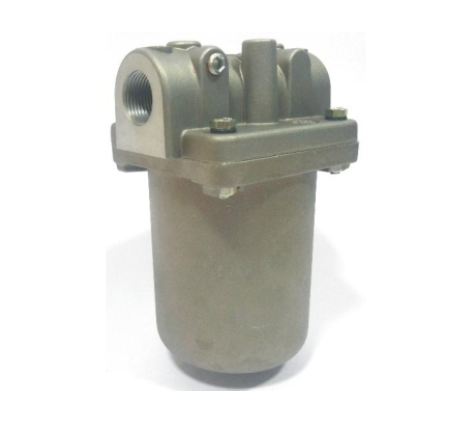

Hydroline HFR – Inline Heavy Duty Filter
The Hydroline HFR is a medium-pressure inline filter built for return and suction line duty in industrial and mobile hydraulic systems. Aluminium die-cast housing in three frame sizes keeps flows to 150 LPM clean across a wide range of port sizes and filtration grades.
Key Specifications
- Construction: Aluminium die cast
- 3 models: HFR-05, HFR-10, HFR-20
- Max flow: 50 LPM (HFR-05) / 100 LPM (HFR-10) / 150 LPM (HFR-20)
- Working pressure: 20 bar | Test: 30 bar | Burst: 40 bar
- Bypass valve: 1 bar standard (15 PSI)
- Max temperature: 80°C
- Fluid: Mineral/petroleum based oils
- Port sizes — BSPP standard: 1/2" (HFR-05); 3/4" or 1" (HFR-10); 1-1/4" or 1-1/2" (HFR-20)
- Port thread options: BSPP (standard), NPT, UNF
- Filtration grades: 10 µm / 25 µm nominal; 10 µm / 25 µm absolute; 43–575 µm mesh options
- Clog indicator: optional visual (GR/GS) or electrical (ER/ES), ordered separately
- Weight: 1.0 kg (HFR-05) | 1.6 kg (HFR-10) | 3.8 kg (HFR-20)
| Model | Max Flow (LPM) | Working Pressure (bar) | Port Size (BSPP std) | Bypass (bar) | Max Temp (°C) | Filtration Options (µm) | Weight (kg) |
| HFR-05 | 50 | 20 | 1/2" | 1 | 80 | 10/25 nom; 10/25 abs; 43–575 mesh | 1.0 |
| HFR-10 | 100 | 20 | 3/4" or 1" | 1 | 80 | 10/25 nom; 10/25 abs; 43–575 mesh | 1.6 |
| HFR-20 | 150 | 20 | 1-1/4" or 1-1/2" | 1 | 80 | 10/25 nom; 10/25 abs; 43–575 mesh | 3.8 |
