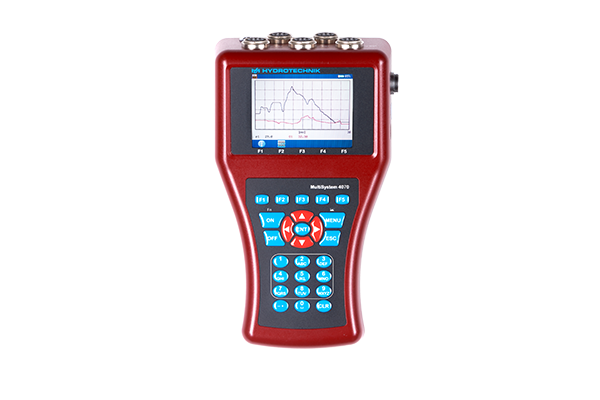

Hydrotechnik MultiSystem 4070
The Hydrotechnik MultiSystem 4070 is a professional-grade, handheld data recorder designed for field diagnostics on hydraulic systems — capturing pressure, temperature, flow, and frequency data simultaneously, then storing it for analysis back at the workshop. Compact enough to take to the machine, robust enough for a full day on site, the MultiSystem 4070 is the diagnostic tool for serious hydraulic troubleshooting.
Key specifications:
- 5 measuring inputs: 3x analogue, 1x frequency, 1x switchable (frequency/analogue), plus digital I/O
- Signal inputs: 0/4–20 mA, 0/2–10 V, 1–5 V, 0.5–4.5 V, ±10 V
- Frequency range: 0.25 Hz – 20 kHz with direction detection
- 10 special channels for CAN data and calculated values (CAN, CANopen, SAE J1939)
- Storage: up to 100 measurement series, 2 million values per series (4 GB microSD)
- Display: 3.5" colour TFT (QVGA 320 x 240)
- Battery: Li-Ion, ≥10 hours operating time; full charge in under 3 hours
- Connectivity: USB Device, USB Host, RS232/CAN interface
- Expandable via MultiXtend (adds Bluetooth and LAN capability)
- Compatible with HySense® QT600 for viscosity-compensated flow measurement
- Compatible with HySense® CX 197 & Patrick for oil condition monitoring
- Operating temperature: −10°C to +50°C
- IP40 rated | Weight: 0.795 kg | Dimensions: 270 × 140 × 69 mm
- Software compatible: Windows 7/8.1/10; Hydrotechnik HYDROcenter, HYDROlink 6, HYDROcom 6
- CE marked — EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS 2011/65/EU
| Feature | MultiSystem 4070 | MultiSystem 5070 |
| Measuring inputs | 5 (3x AD, 1x freq, 1x switchable) | 8 (6x AD, 2x switchable) |
| Total channels | 15 | 42 |
| Special/CAN channels | 10 | 32 |
| CAN interfaces | 1 | 2 |
| Max scanning rate | 1 ms | 0.1 ms (10x faster) |
| Storage series | 100 | 500 |
| Max values/series | 2 million | 6 million |
| Display | 3.5" TFT | 5" TFT (daylight readable) |
| Charge time | <3 hours | <2 hours |
| Weight | 0.795 kg | 1.072 kg |
