M+S KK Series Steering Column

  • M+S Hydraulic M+S KK Series Steering Column — European-made hydraulic steering component for tractors, forklifts, and mobile machinery, supplied by Fluid Power Distributors (FPD), Hamilton New Zealand — hydraulic steering specialists serving agriculture, construction, and marine sectors across New Zealand

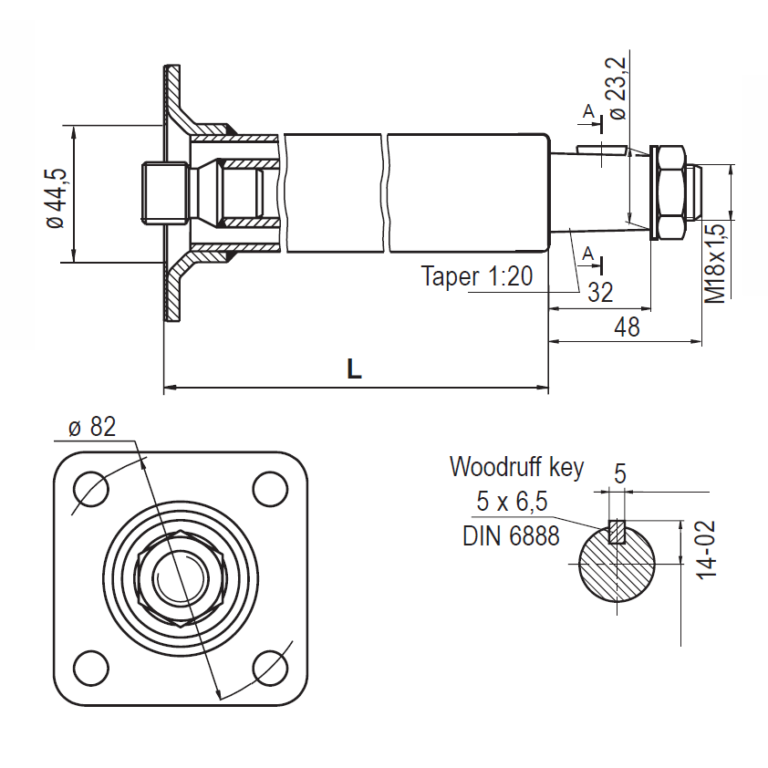

  • M+S KK Steering Column Schematic Drawing
  • M+S Hydraulic M+S KK Series Steering Column — European-made hydraulic steering component for tractors, forklifts, and mobile machinery, supplied by Fluid Power Distributors (FPD), Hamilton New Zealand — hydraulic steering specialists serving agriculture, construction, and marine sectors across New Zealand

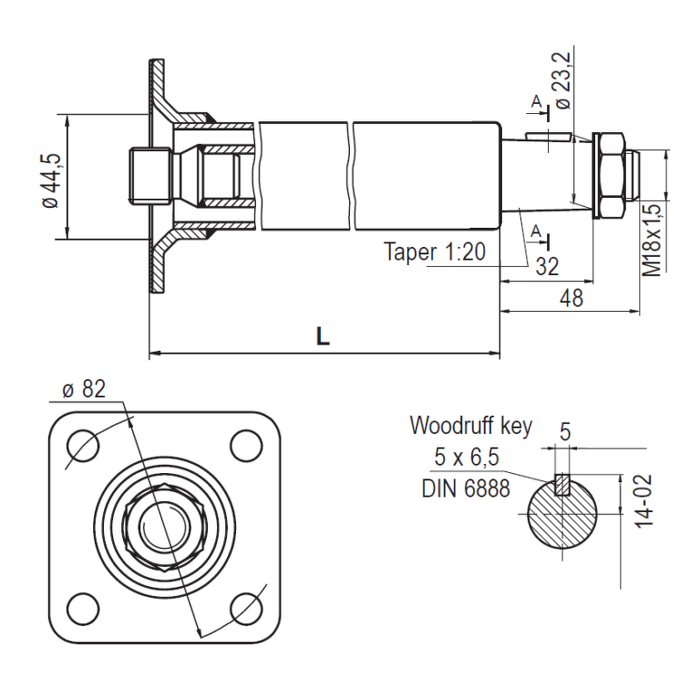

  • M+S KK Steering Column Schematic Drawing

Technical Data

KK Series Specifications (334 Kb)

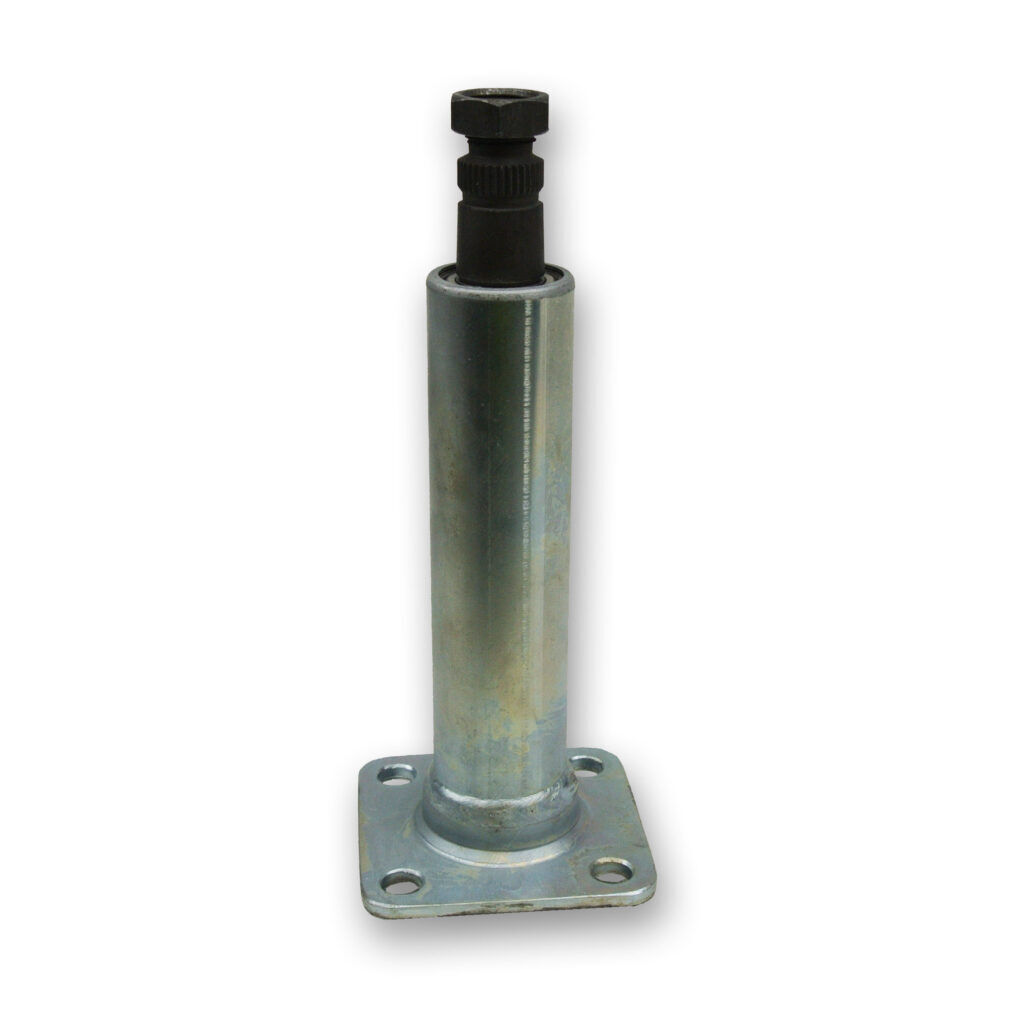

M+S KK Series Steering Column

KK Series steering column and shaft journal – manufactured in Europe by M+S Hydraulic.

Also available:

  • SJ-HKU – shaft journal
  • Option E – electrical signal connection
  • Option F – mounting flange with tabs

Enquire Now

PartLength (mm)Weight (kg)
KK75-I78.00.75
KK150-I168.21.10
KK275-I278.01.50
KK390-I393.01.90
KK465-I465.02.50
KK750-I777.83.30
