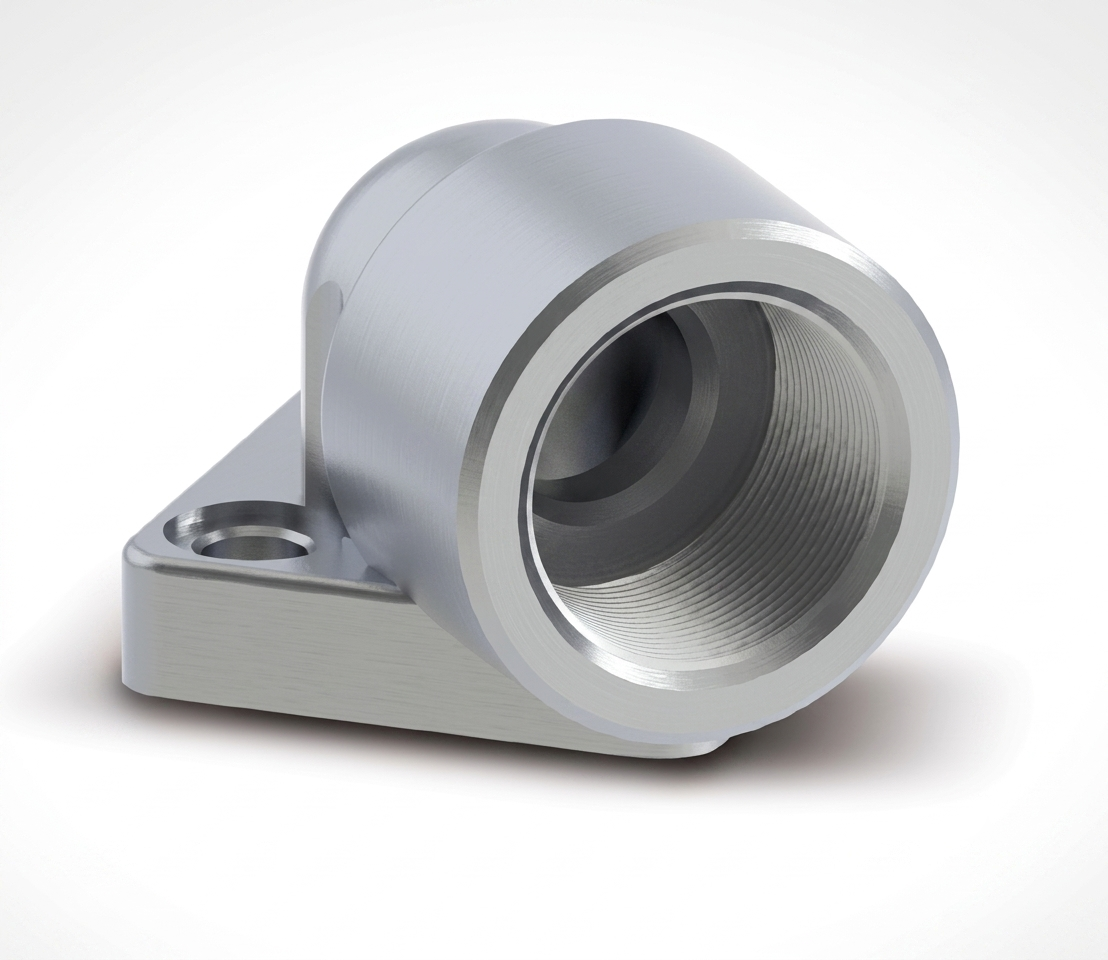

Port Adaptor Flange Mounting 90° Pipe Threaded — 3-Hole
When straight-through plumbing isn't an option, the DRA 3-hole 90° adaptor routes your hydraulic line cleanly at right angles to the pump port. O-ring sealed and available in BSP pipe thread sizes from 3/8" to 1", this adaptor is a practical solution for tight installations where clearance is limited.
- 90° elbow configuration with 3-hole flange mount
- Thread sizes: R 3/8" to R 1"
- Mounting bolt thread: M6 to M10
- O-ring sealed connection
- Euro standard PCD mounting
| A | B | C | D | D1 | L | M | O-RING |
| R 3/8" | 27 | 18 | 30 | 12 | 6.5 | M 6X20 | 15.88X2.62 |
| R 1/2" | 27 | 18 | 30 | 12 | 6.5 | M 6X20 | 15.88X2.62 |
| R 3/8" | 30 | 19 | 35 | 14 | 6.5 | M 6X20 | 18.72X2.62 |
| R 1/2" | 30 | 19 | 35 | 14 | 6.5 | M 6X20 | 18.72X2.62 |
| R 3/4" | 30 | 19 | 35 | 14 | 6.5 | M 6X20 | 18.72X2.62 |
| R 1/2" | 38 | 22 | 40 | 19 | 8.5 | M 8X25 | 22X3 |
| R 3/4" | 38 | 22 | 40 | 19 | 8.5 | M 8X25 | 22X3 |
| R 3/4" | 44 | 27 | 48 | 19 | 8.5 | M 8X25 | 29X4 |
| R 1" | 44 | 27 | 48 | 19 | 8.5 | M 8X25 | 29X4 |
| R 3/4" | 45 | 27 | 51 | 24.5 | 10.5 | M 10X25 | 29X4 |
| R 1" | 45 | 27 | 51 | 24.5 | 10.5 | M 10X25 | 29X4 |
| R 3/4" | 45 | 27 | 56 | 24.5 | 10.5 | M 10X25 | 29X4 |
| R 1" | 45 | 27 | 56 | 24.5 | 10.5 | M 10X25 | 29X4 |
