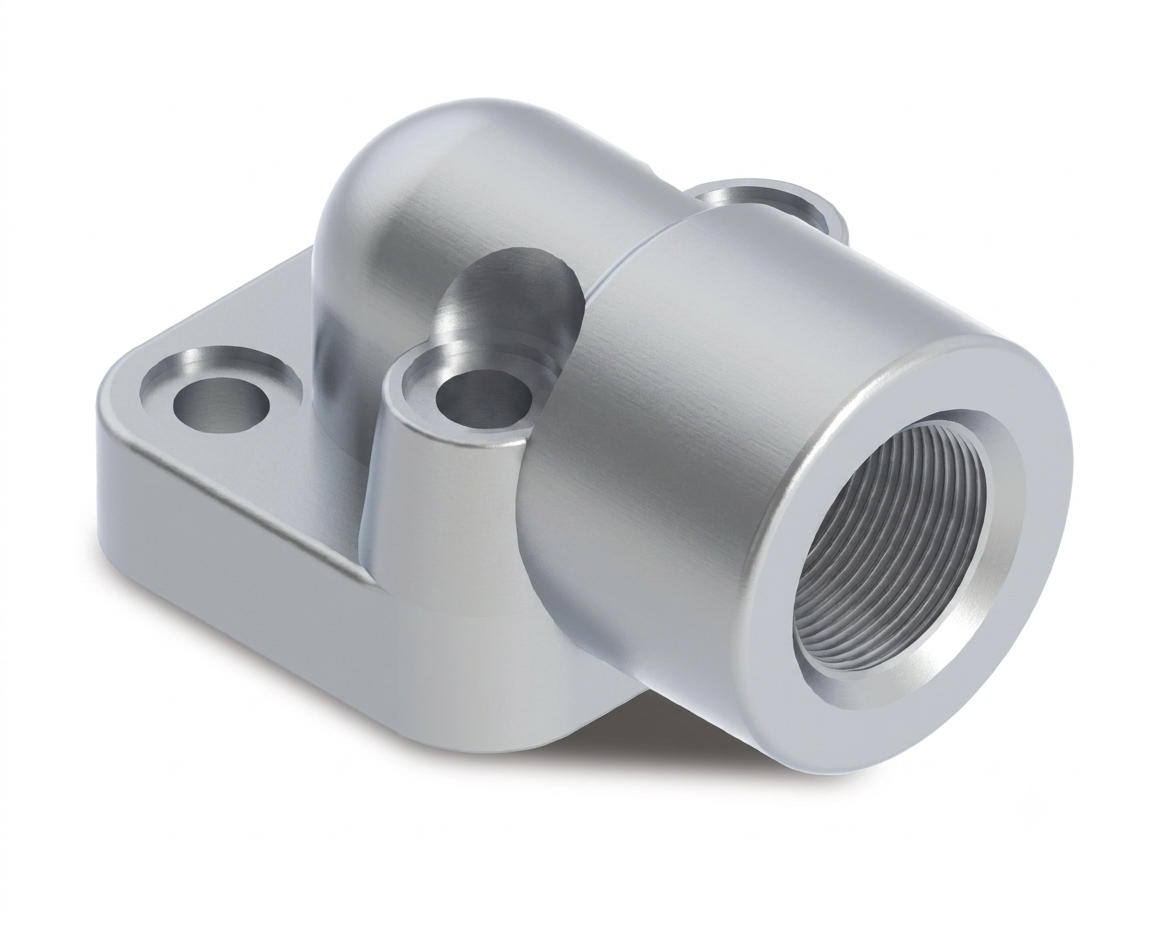

Port Adaptor Flange Mounting 90° Pipe Threaded — 4-Hole
The 4-hole variant delivers the same right-angle routing capability with an additional mounting bolt for enhanced stability — ideal where higher vibration or pressure cycling demands a more secure flange connection. Available in BSP pipe thread sizes from 3/8" to 1".
- 90° elbow configuration with 4-hole flange mount
- Thread sizes: R 3/8" to R 1"
- Mounting bolt thread: M6 to M8 (dual-bolt pattern)
- O-ring sealed connection
| A | B | C | D | D1 | L | M | O-RING |
| R 3/8" | 40 | 18 | 30 | 12 | 6.5 | M 6X20-6X35 | 15.88X2.62 |
| R 1/2" | 40 | 18 | 30 | 12 | 6.5 | M 6X20-6X35 | 15.88X2.62 |
| R 3/8" | 42.5 | 18 | 35 | 14 | 6.5 | M 6X20-6X35 | 18.72X2.62 |
| R 1/2" | 42.5 | 18 | 35 | 14 | 6.5 | M 6X20-6X35 | 18.72X2.62 |
| R 1/2" | 47.5 | 24 | 40 | 17 | 6.5 | M 6X20-6X35 | 22X3 |
| R 3/4" | 47.5 | 24 | 40 | 17 | 6.5 | M 6X20-6X35 | 22X3 |
| R 3/4" | 54 | 29 | 55 | 25 | 8.5 | M 8X45-8X60 | 29X4 |
| R 1" | 54 | 29 | 55 | 25 | 8.5 | M 8X45-8X60 | 29X4 |
