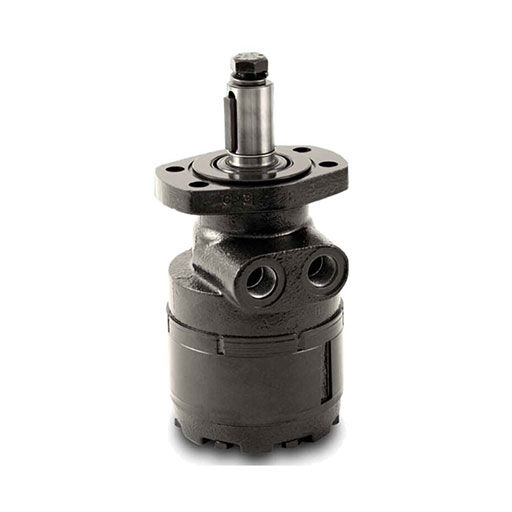

White Drive RE HD - 530 Orbital Motor

White Drive RE HD - 530 Orbital Motor

The 530 prefix is highlighted as the heavy-duty (HD) bearing version of the RE line. This motor is a staple in New Zealand for medium-duty propulsion and industrial drives, specifically designed for applications like Aerial Work Platforms (AWPs), boom lifts, and heavy conveyor systems that face high radial loads and high-pressure duty cycles. RE Series motors offer the perfect compromise between price and performance by producing power at a reasonable cost. Although these motors perform well in a wide range of applications, they are especially suited for low flow, high pressure applications.

Shaft Options

• #10 - 1" Straight Keyed". The standard light-medium duty option, often used for conveyor drives.
• #20 - 1-1/4" Straight Keyed. The Heavy Duty standard. Features a 5/16"" key; provides significantly higher shear strength for high-torque RE series applications.
• #21 - 32mm Straight Keyed. The European metric standard (10mm key). Essential for replacing Danfoss OMS or M+S MS motors on imported machinery.
• #22 / #25 - 1-1/4" Tapered. Most Popular for Wheel Drives. Includes a 5/16"" key and a heavy-duty nut. The taper ensures a zero-clearance fit for wheels and hubs.
• #23 - 14 Tooth Spline. Designed for high-frequency reversing or high-shock loads. Matches the standard SAE 14T 12/24 DP spline interface.
• #02 - 1" 6B Spline. The agricultural standard, allowing direct connection to many NZ-made farm implements.
• #28 - 35mm Straight Keyed. An extra-heavy metric option often found on specialized industrial equipment and larger European loaders.
