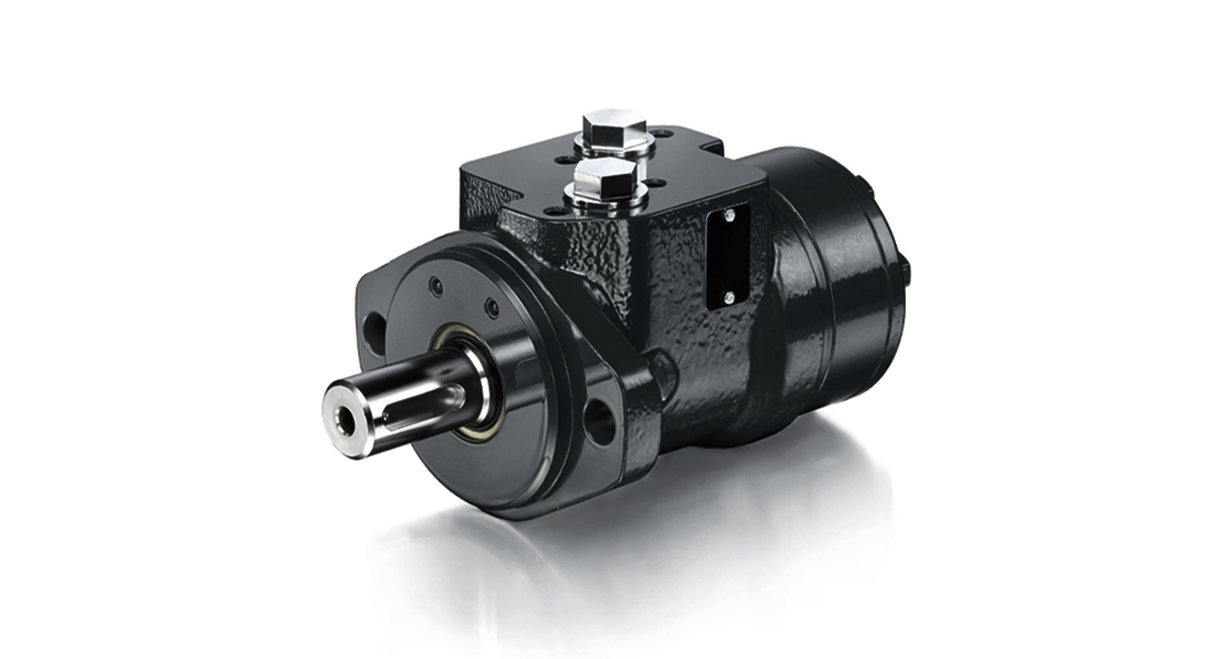

White Drive WP-155 Orbital Motor
The WP motor series is an economical alternative to more complex geroler designs that still provides high efficiency across a wide performance range. These motors are intended for medium-duty applications requiring high torque in a compact package and are suitable for industrial and mobile applications including car wash brushes, food processing equipment, conveyors, machine tools, agricultural equipment, sweepers, skid steer attachments, and more.
- Displacement [25 – 388 cc]
- Max. cont. pressure [160 bar]
- Max. cont. torque []
- Max. cont. flow rate: [60 LPM ]
- Available with BSPP or SAE ports.
- 2-Hole SAE A or 4-Hole Square mounting
| Code | Displacement (cm3) | Cont. Max Speed (rpm) | Cont. Max Flow (LPM) | Cont. Max Torque (Nm) | Peak Max Pressure (bar) |
| 025 | 25 | 1570 | 40 | 35 | 100 |
| 032 | 32 | 1550 | 50 | 45 | 100 |
| 040 | 40 | 1471 | 60 | 65 | 100 |
| 050 | 50 | 1208 | 60 | 91 | 140 |
| 060 | 59 | 1185 | 60 | 125 | 160 |
| 080 | 78 | 896 | 60 | 164 | 160 |
| 100 | 96 | 728 | 60 | 195 | 160 |
| 125 | 125 | 559 | 60 | 258 | 160 |
| 160 | 154 | 452 | 60 | 321 | 160 |
| 200 | 190 | 367 | 60 | 380 | 150 |
| 250 | 240 | 291 | 60 | 445 | 140 |
| 315 | 303 | 228 | 60 | 460 | 120 |
| 400 | 388 | 155 | 60 | 488 | 95 |
